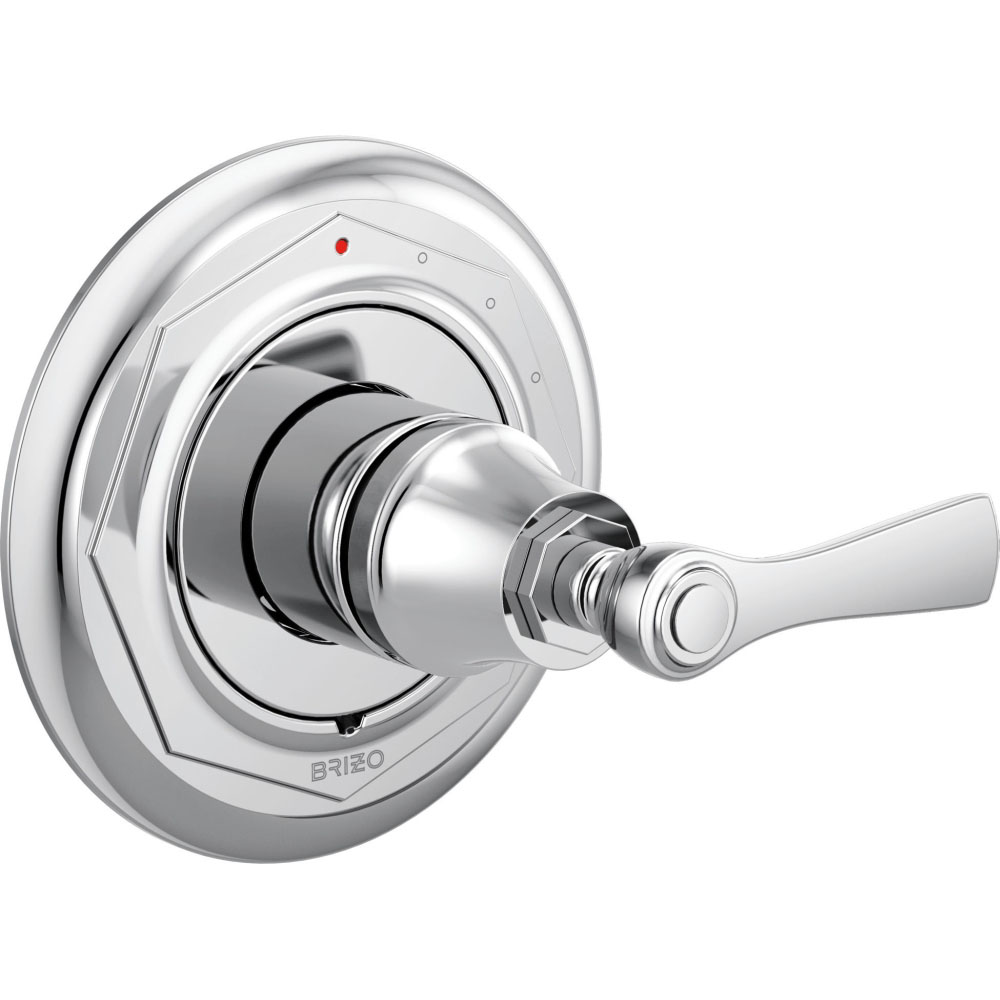

T60P060-PC Pressure Balance Valve Only Trim Chrome
Part #DT60P060PC
MFG #T60P060-PC
Manufacturer Name : Brizo
- Shower Faucet Valve Trim
- Type 1-Function, Wall Mount, Lever
- Handle Dimensions 6-1/2 Inch Diameter
- Number of Handles 1
- Material Fabricated Solid Brass
- Color/Finish Polished Chrome Plated
- Inclusions/Features Pressure Balance Cartridge Adjusts Temperature, Red/Blue Indicator Marking, 120 Degree Handle Operation
- Used On Item Shower Faucet Pressure Balancing Valve
- Applicable Standard ADA, ASME A112.18.1/CSA B125.1, ASSE 1016, ICC/ANSI A117.1
- Install Instructions
Specification Sheet - Maintains a Balanced Pressure of Hot and Cold Water Even when a Valve is Turned on or Off Elsewhere in the System; Back-to-Back Installation Capability; Temperature Only Controlled with Handle; Field Adjustable to Limit Handle Rotation into Hot Water Zone; ADA Compliant
