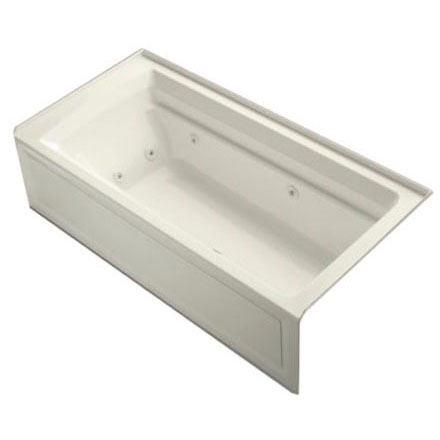

1124-RA BIS RH Archer 72"X36" Whirlpool
Part #K1124RABIS
MFG #1124-RA-96
Manufacturer Name : Kohler
- Whirlpool Bathtub
- Type Alcove
- Shape Rectangle in Rectangle
- Applicable Standard ADA, CSA B45.5/IAPMO Z124, ICC/ANSI A117.1, ASME A112.19.7, ASTM E162/E662, UL 1795
- Length 72"
- Width 36"
- Height 19"
- Water Depth 15"
- Material Acrylic
- Color/Finish Biscuit
- Water Capacity 72 Gallon
- Number of Jets 8
- Drain Location Right
- Drain Connection 1-1/2"
- Tub Details Integral Apron with Removable Access Panel, Integral Tile Flange, Molded Lumbar Support, Arm Rest, Textured Bottom Surface
- System Features 8 Color Matched Hydromassage Jet, Comfortable Soaking, Pump with Air Switch and Grounding Type Plug-In Power Cord
- Input Supply Rating 120 Volt 60 Hertz 15 Amp
- Required Accessories K-7271 or K-7272 Bath Drain
- Optional Accessories K-9529 Bath Seat
- Bathing Well Dimension 51-3/8" x 21" Bottom, 64-1/2" x 30-1/2" Top
- Weight 135 Lb
- Warranty 1 Year Limited
- Install Instructions
Specification Sheet - Taking its Design Cues from Traditional Craftsman Furniture, the Archer Line of Baths Reveals Beveled Edges and Curved Bases for a Clean, Sophisticated Style; This Bath Offers a Low Step-Over Height While Allowing for Deep, Comfortable Soaking; Whirlpool Jets Relax Away the Day's Tension; Single-Speed Whirlpool Offers Performance and Value, with 8 Fully Adjustable Jets; Hydromassage Flow and Direction can be Controlled at Each Jet; Comfort Depth Design Offers a Convenient 19" Step-Over Height While Retaining the Same Depth as a Standard 21" Bath; Generous 6' Length Provides an Incredibly Spacious Bathing Area; Molded Lumbar Support Offers Extra Comfort While Bathing; Slotted Overflow Allows for Deep Soaking; Coordinates with Other Products in the Archer Collection; Tile Flange Helps Prevent Water from Seeping Behind Wall and Simplifies Alcove Installation; 1 Year Limited Warranty
