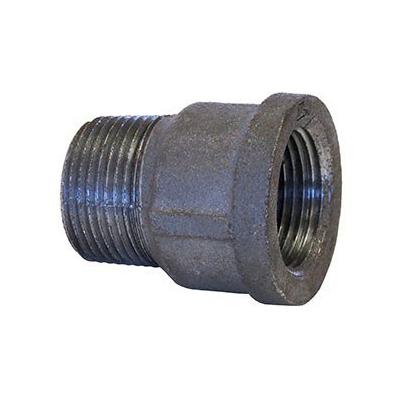

1" Domestic Black Malleable Iron Extension
Part #1DBMIE
MFG #1.BME
End Connection : Male Thread X Female Thread
Fitting Size : 1"
Fitting Type : Extension
Manufacturer Name : Ward
Material : Malleable Iron
- Extension Piece
- Item Extension Piece
- Type Male, Female
- Applicable Standard UL, ULC, FM, NSF 61
- Designated Size 1"
- Thickness STD
- End Connection Female Threaded x Male Threaded
- Material Malleable Iron
- Material Specification ASTM A197
- Process Cast, Machined
- Finish Black
- Pressure Rating 300 PSI, Class 150
- Temperature Rating -20 to 150 Deg F
- Application Piping
- Service Air, Chemical
- Packaging Quantity 25 Per Box, 100 Per Master Carton
- Standards and Specifications ASME B16.3, ANSI/ASME B1.20.1 Dimension, ASTM A153, ASTM B633 Coating, ASME B16.3 Pressure Rating
- Ward Class 150 Malleable Iron Fittings are Made with the Most Sophisticated Metallurgical and Processing Controls Available; This Sophisticated Chemical Analysis is Complemented by Rigorous Quality Control of Incoming Raw Materials and Iron Processing; The Final Casting Produced by this Detailed Attention to Quality is a Close-Grained, High Strength, Non-Porous Iron; The Threads have an Accurate Form, Thread Length and Straightness to Allow them to Easily Engage Threaded Pipe; Ward Fittings have a Chamfered Opening to Allow Faster and Easier Pipe Engagement; This Feature also Protects the Fitting Threads from Damage During Handling
