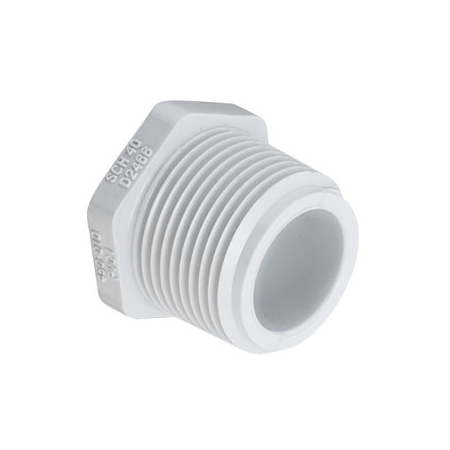

450-025 2-1/2" PVC Schedule 40 Male Plug
Part #212PVC40MP
MFG #450-025
End Connection : Male Thread
Fitting Size : 2-1/2"
Fitting Type : Plug
Manufacturer Name : Spears
Material : PVC Plastic
Schedule : 40
- Plug Fitting
- Type Square Head
- Applicable Standard NSF
- Nominal Pipe Size 2-1/2"
- Overall Length 1-31/32"
- Schedule 40 S
- Thickness 0.203"
- End Connection Male Threaded
- Material PVC
- Material Specification ASTM D1785/D2466
- Process Injection Molded
- Finish White
- Temperature Rating 140 Deg F
- Application Potable Water
- Packaging Quantity 10
- Warranty Lifetime Limited
- MSDS Sheets
Specification Sheet - Designs Combine Years of Proven Experience with Computer Generated Stress Analysis to Yield the Optimum Physical Structure and Performance for Each Fitting; Material Reinforcement is Uniformly Placed in Stress Concentration Areas for Substantially Improved Pressure Handling Capability, Resulting Products are Subjected to Numerous Verification Tests to Assure Obtaining the Very Best PVC Fittings Available; Exceptional Chemical and Corrosion Resistance will Provide Many Years of Maintenance Free Service and Extended System Life; Lower Installation Costs; Smooth Interior Walls Result in Lower Pressure Loss and Higher Volume than Conventional Metal Fittings; Advanced Design Specialty Fittings; Lifetime Limited Warranty
