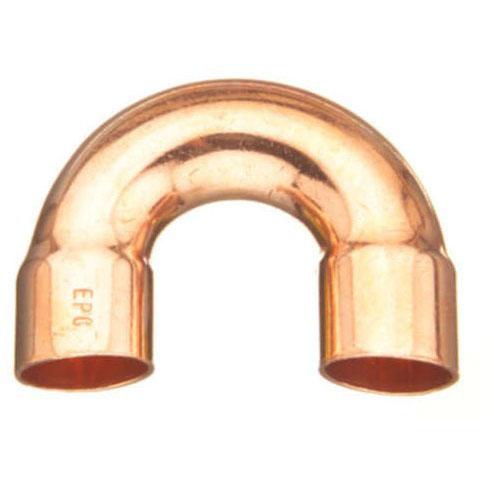

3/4" X 2-1/2" CXC 180 Elbow
Part #34C180
MFG #W 06092
End Connection : Sweat
Fitting Size : 2-1/2" X 3/4"
Fitting Type : Return Bend
Manufacturer Name : Mueller Streamline
Material : Copper
- Bend Fitting
- Type Return
- Applicable Standard ASME/ANSI B16.22
- Size A 3/4"
- Size B 2-1/2"
- Angle 180 Degree
- End Connection Female Soldered x Female Soldered
- Material Copper
- Material Specification MSS-SP-104
- Process Wrot
- Temperature Rating 350 to 550 Deg F
- Application Industrial, Residential
- Overall Dimension 2.44" Length x 3.44" Width x 0.97" Height
- Weight 0.19 Lb
- Packaging Quantity 10 Per Inner Pack, 100 Per Master Carton
- Warranty 50 Years
- Specification Sheet
- The Production of Copper Fittings is Environmentally Safe and the Industry is the Undisputed Leader in Recycling; Over Half of the Copper Used in Manufacturing EPC Copper Fittings is from Recycled Sources; Made in USA; 50 Years Warranty
