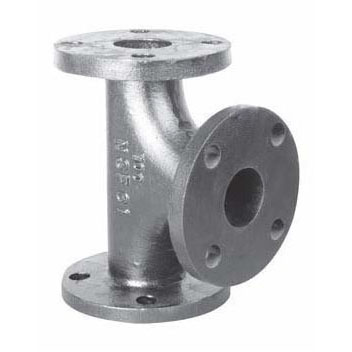

3" Domestic Black Cast Iron Flanged Tee
Part #3DBCIFT
MFG #3.BFT
End Connection : Flange
Fitting Size : 3"
Fitting Type : Tee
Manufacturer Name : Ward
Material : Cast Iron
Option : Domestic
- Tee Fitting
- Type Straight
- Applicable Standard ANSI/ASME B16.1, ANSI/ASME B1.20.1, UL, ULC, FM, NSF 61/61G
- Nominal Size 3"
- Thickness STD
- End Connection Flanged x Flanged x Flanged
- Material Cast Iron
- Material Specification ASTM A126/A153/B633
- Process Machined
- Finish Black
- Pressure Rating Class 125
- Packaging Quantity 1 per Inner Pack, 1 per Master Carton
- Warranty 1 Year
- The Iron from Which Class 125 Cast Iron Fittings are Made is Held to Strict Formula by Careful Chemical Analysis and Control; Straightness and Correct Depth of Threads is Assured through Continuous Capable Inspection, by Careful Trained Inspectors; Every Fitting is Hand Sorted and Inspected to Eliminate Defective Castings; A Chamfer is Cut or Cast in All Openings, Permitting Easy Entrance of Pipe and Preventing Damage to the First Thread in Handling and Threading; The Use of Modern Precision Equipment We are Able to Produce Castings of Rugged Strength and the Ability to Make a Water Tight Seal; 1 Year Warranty
