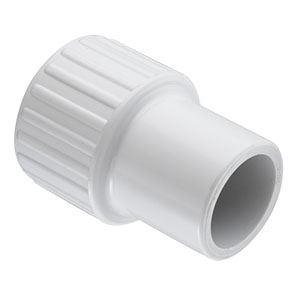

478-040 4" PVC Schedule 40 Socket X Spigot Street Female Adapter
Part #4PVC40STFA
MFG #478-040
End Connection : Spigot X Female Thread
Fitting Size : 4"
Fitting Type : Adapter
Manufacturer Name : Spears
Material : PVC Plastic
Schedule : 40
- Adapter Fitting
- Type Female, Spigot, Straight
- Applicable Standard NSF
- Size A 4"
- Size B 4"
- Schedule 40 S
- Thickness 0.237"
- End Connection Spigot x Female Threaded
- Material PVC
- Material Specification ASTM D1784/D1785/D2466
- Process Injection Molded
- Finish White
- Temperature Rating 140 Deg F
- Application Potable Water System
- Overall Dimension 5" Outer Diameter x 4" Length
- Packaging Quantity 5 Per Inner Pack
- Warranty Lifetime Limited
- MSDS Sheets
Specification Sheet - Designs Combine Years of Proven Experience with Computer Generated Stress Analysis to Yield the Optimum Physical Structure and Performance for Each Fitting; Material Reinforcement is Uniformly Placed in Stress Concentration Areas for Substantially Improved Pressure Handling Capability, Resulting Products are Subjected to Numerous Verification Tests to Assure Obtaining the Very Best PVC Fittings Available; Exceptional Chemical and Corrosion Resistance will Provide Many Years of Maintenance-Free Service and Extended System Life; Lower Installation Costs; Smooth Interior Walls Result in Lower Pressure Loss and Higher Volume than Conventional Metal Fittings; Advanced Design Specialty Fittings; Made in USA; Lifetime Limited Warranty
