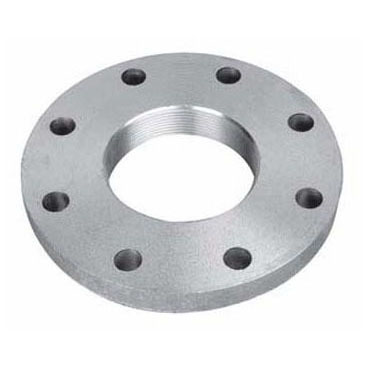

8" X 13-1/2" Domestic Black Cast Iron 125# Threaded Companion Flange
Part #8.1312DBCICF
MFG #8X13D.BCF
End Connection : Flange X Female Thread
Fitting Size : 8" X 13-1/2"
Fitting Type : Flange
Manufacturer Name : Ward
Material : Cast Iron
Option : Domestic
- Flange Fitting
- Type Companion, Straight, Threaded End
- Applicable Standard ANSI/ASME B1.20.1, UL, ULC, FM
- Nominal Pipe Size 8"
- Flange Outside Diameter 13-1/2"
- Thickness 1.12"
- End Connection Flanged x Female Threaded
- Material Cast Iron
- Material Specification ASTM A126
- Process Machined
- Finish Black
- Pressure Rating Class 125
- Overall Height 1.75"
- Hub Size 9.69"
- Number of Bolt Hole 8
- Bolt Hole Size 0.88"
- Bolt Circle Size 11.75" Diameter
- Packaging Quantity 1 Per Inner Box, 1 Per Master Carton
- Ward Flange Components are Made with High Quality Iron and are Designed to Handle the Tough Service that Flange Components Normally Experience; Precision Machining and Thread Chamfering Allow Ward Flange Components to be Easily Installed; Most Importantly, Quality is Built into the Design, Material and Manufacturing of Each of Ward's Flange Components; Cast Iron Flanges May Have Either a Black or Galvanized Finish
