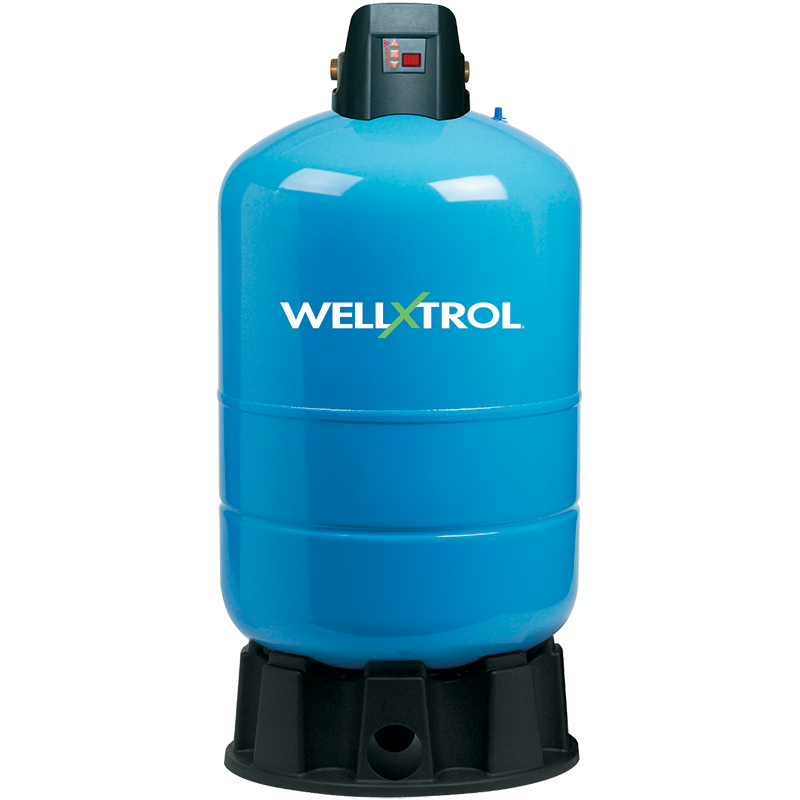

WX1-250 44 Gallon Well-X1 Vertical Tank Package
Part #AMTWX1250
MFG #399572
Capacity : 44 Gallons
End Connection : Female Thread
Manufacturer Name : Amtrol
Material : Steel
Size : 1-1/4"
Type : Tank
- Diaphragm Tank
- Type Vertical, Free Standing, Constant Pressure System
- Applicable Standard NSF/ANSI 61, IS0 9001
- Inlet/Outlet Connection 1" Female Threaded x 1-1/4" Male Threaded
- Tank Capacity 44 Gallon
- Tank Material High Strength Steel
- Temperature Rating 200 Deg F
- Pressure Rating 150 PSIG
- Diaphragm Material Butyl
- Tank Dimensions 22" Diameter x 44" Height
- Tank Warranty 7 Year
- Inclusions/Features Guardian CP Digital Control, Tank Tee, Pressure Relief Valve, Drain Assembly, Press Sleeve
- Application Variable Frequency Drive (VFD) System
- Maximum Pump Horsepower 2 HP
- Weight 80 Lb
- Install Instructions
- The Well-X1 combines a top-of-the-line Well-X-Trol with the Guardian CP digital pump control and protector to provide an easy-to-install, ready-to-run well tank system. It's the ultimate combination of quality, savings and performance.
