Part #D583LFSSWF

MFG #583LF-SSWF

Specifications

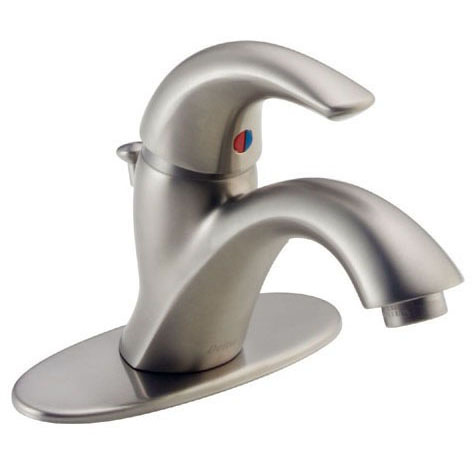

• Lavatory Faucet
• Type Single Handle, Deck Mount, Centerset
• Applicable Standard ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, ICC/ANSI A117.1, IAPMO, EPA, NSF 61
• Inlet Size 3/8"
• Spout Type Rigid
• Spout Dimensions 4" Height x 2-1/2" Clearance x 5-1/2" Reach
• Handle Type Lever
• Color/Finish Stainless
• Inlet Connection Compression
• Faucet Hole Center Single
• Flow Rate 1.5 GPM at 60 PSI
• Inclusions/Features Matching Finish Drain Assembly, Color Coded Plug Button on Handle for Hot/Cold Identification, 50/50 Pop-Up has Metal Flange with Plastic Drain
• Used On Item Lavatory Sink
• Maximum Deck Thickness 1-3/4"
• Warranty 5 Year Limited (Commercial/Industrial/Business Application), Lifetime Limited Warranty Material, Workmanship and Finish Defects to the Original Consumer Purchaser
