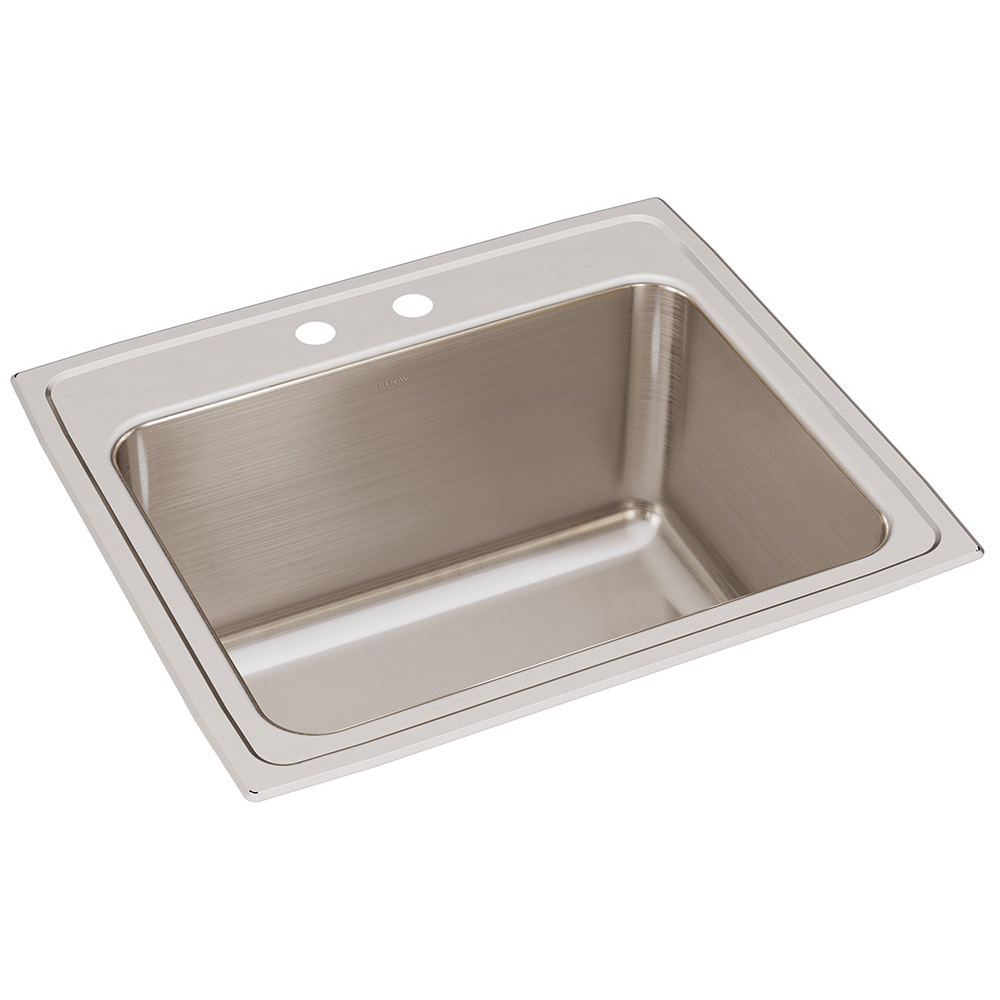

DLR-2522-12-2 FOR 4" CC FCT
Part #ELKDLR2522122
MFG #DLR2522122
Color/Finish : Stainless
Faucet Holes : 2
Gauge : 18 Gauge
Installation : Drop-In
Manufacturer Name : Elkay
Material : Stainless Steel
Type : Single Bowl
- Kitchen Sink
- Type Single Bowl
- Shape Rectangle in Rectangle
- Applicable Standard ASME A112.19.3/CSA B45.4, IAPMO, CUPC, IPC, NPC
- Length 25"
- Width 22"
- Height 12-1/8"
- Cutout Dimensions 24-3/8" Length x 21-3/8" Width
- Bowl Dimensions 21" Length x 15-3/4" Width x 12" Depth
- Material 304 Nickel Bearing Stainless Steel
- Color/Finish Lustrous Highlighted Satin
- Material Thickness 18 Gauge
- Number of Holes 2
- Faucet Hole Center 4"
- Mounting Type Top Mount
- Inclusions/Features 30" Minimum Cabinet Size, Fully Undercoated, U-Channel Type Mounting System
- Drain Hole Size 3-1/2"
- Faucet Hole Size 1-1/2"
- Optional Accessories CB1516 Cutting Board, LKWRB2115SS/LKWERBSS Rinsing Basket, LKWUCSS Utensil Caddy, LKWBG2115SS Bottom Grid, LK99/LKAD35 Drain
- E-Dock Accessories LKDEK35 Disposal Cover, LKEKHOOK Hook, LKEKLEDGE ledge, LKEKSPONGE Sponge Holder, LKEKUTENSIL Utensil Holder
- Warranty Lifetime Limited
- Install Instructions
Specification Sheet - Elevate the Culinary Experience with the Professional Grade Gourmet Collection. Meticulous Attention to Form and Function Creates a New Standard for the Connoisseur. Underside of Sink is Fully Undercoated to Dampen Sound and Prevent Condensation. Available with Quick-Clip Mounting System. Lifetime Limited Warranty.
