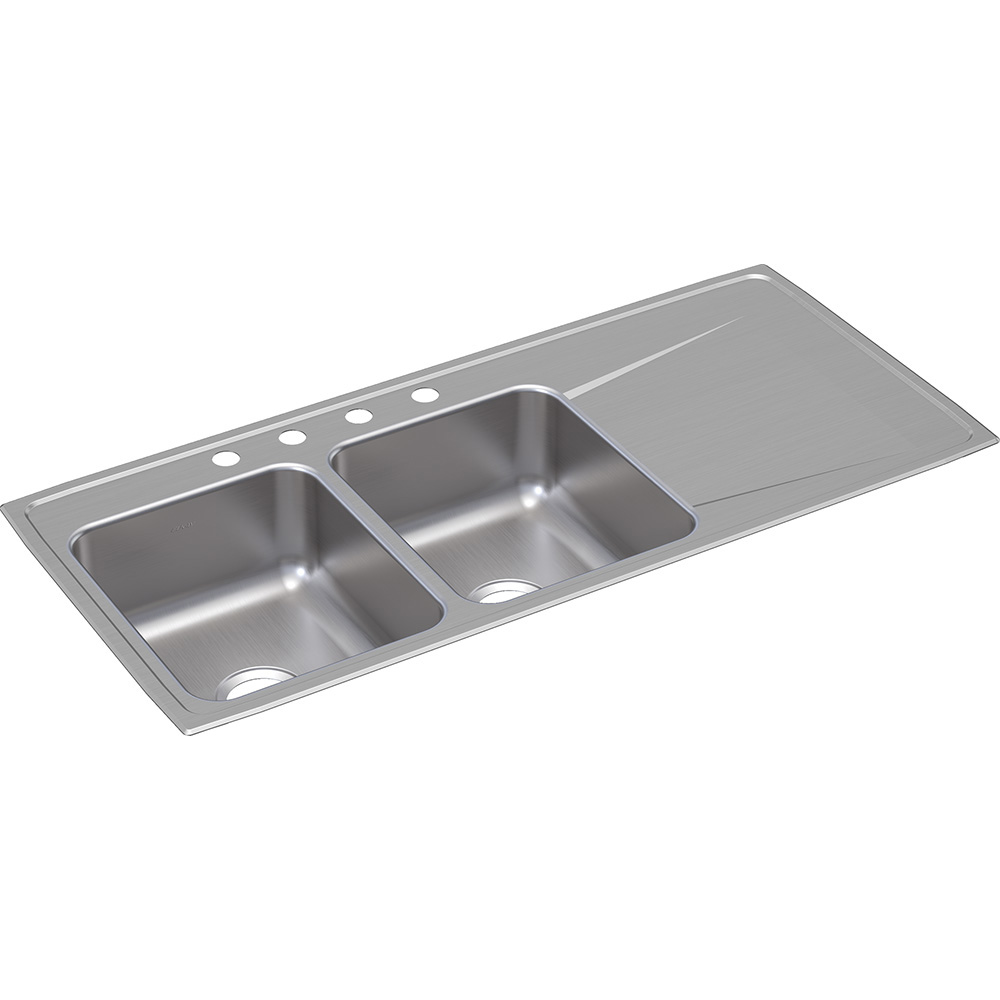

ILR-4822-L-4 4-H DBL BOWL SINK
Part #ELKILR4822L4
MFG #ILR4822L4
Color/Finish : Stainless
Faucet Holes : 4
Gauge : 18 Gauge
Installation : Drop-In
Manufacturer Name : Elkay
Material : Stainless Steel
Type : Double Bowl
- Kitchen Sink
- Type Double Bowl
- Shape Rectangle in Rectangle
- Applicable Standard ASME A112.19.3/CSA B45.4, ANSI A112.19.3M, IAPMO, UPC
- Length 48"
- Width 22"
- Height 7-5/8"
- Cutout Dimensions 47-3/8" Length x 21-3/8" Width
- Bowl Dimensions 13-1/2" Length x 16" Width x 7-1/2" Depth
- Material Seamless Drawn 304 Nickel Bearing Stainless Steel
- Color/Finish Lustrous Highlighted Satin
- Material Thickness 18 Gauge
- Number of Holes 4
- Faucet Hole Center 12"
- Mounting Type Top Mount
- Inclusions/Features 69" Minimum Cabinet Size, Fully Undercoated, Integral Fan Pitched 17-7/8" Length Single Drainboard, Left Hand Bowl
- Drain Hole Size 3-1/2"
- Faucet Hole Size 1-1/2"
- Optional Accessories CB1613/CB1713/CBR1316/CBS1316 Cutting Board, LKWRB1316SS/LKWERBSS Rinsing Basket, LKWUCSS Utensil Caddy, LKWBG1316SS Bottom Grid, LK99 Drain
- Warranty Lifetime Limited
- Install Instructions
Specification Sheet - Elevate the Culinary Experience with the Professional Grade Gourmet Collection. Meticulous Attention to Form and Function Creates a New Standard for the Connoisseur. Underside of Sink is Fully Undercoated to Dampen Sound and Prevent Condensation. Lifetime Limited Warranty.
