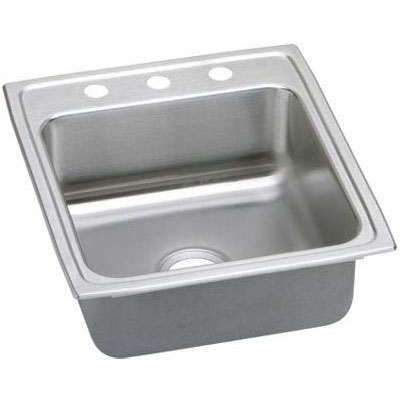

LRAD-2022-55-3 ADA SS SINK
Part #ELKLRAD2022553
MFG #LRAD2022553
Color/Finish : Stainless
Faucet Holes : 3
Gauge : 18 Gauge
Installation : Drop-In
Manufacturer Name : Elkay
Material : Stainless Steel
Type : Single Bowl
- Kitchen Sink
- Type Single Bowl
- Shape Square in Rectangle
- Applicable Standard ADA, ASME A112.19.3/CSA B45.4, ANSI/ICC A117.1, IAPMO, CUPC, IPC, NPC
- Length 19-1/2"
- Width 22"
- Height 5-1/2"
- Cutout Dimensions 18-7/8" Length x 21-3/8" Width
- Bowl Dimensions 16" Length x 16" Width x 5-3/8" Depth
- Material 304 Nickel Bearing Stainless Steel
- Color/Finish Lustrous Highlighted Satin
- Material Thickness 18 Gauge
- Number of Holes 3
- Faucet Hole Center 8"
- Mounting Type Top Mount
- Inclusions/Features 24" Minimum Cabinet Size, Fully Undercoated, Off-Centered Rear Drain, U-Channel Type Mounting System
- Drain Hole Size 3-1/2"
- Faucet Hole Size 1-1/2"
- Optional Accessories CB1713/CBS1316 Cutting Board, LKWRB1316SS/LKWERBSS Rinsing Basket, LKWUCSS Utensil Caddy, LKWOBG1616SS Bottom Grid, LK99 Drain
- Warranty Lifetime Limited
- Install Instructions
Specification Sheet - Elevate the Culinary Experience with the Professional Grade Gourmet Collection. Meticulous Attention to Form and Function Creates a New Standard for the Connoisseur. Underside of Sink is Fully Undercoated to Dampen Sound and Prevent Condensation. Available with Quick-Clip Mounting System. Lifetime Limited Warranty.
