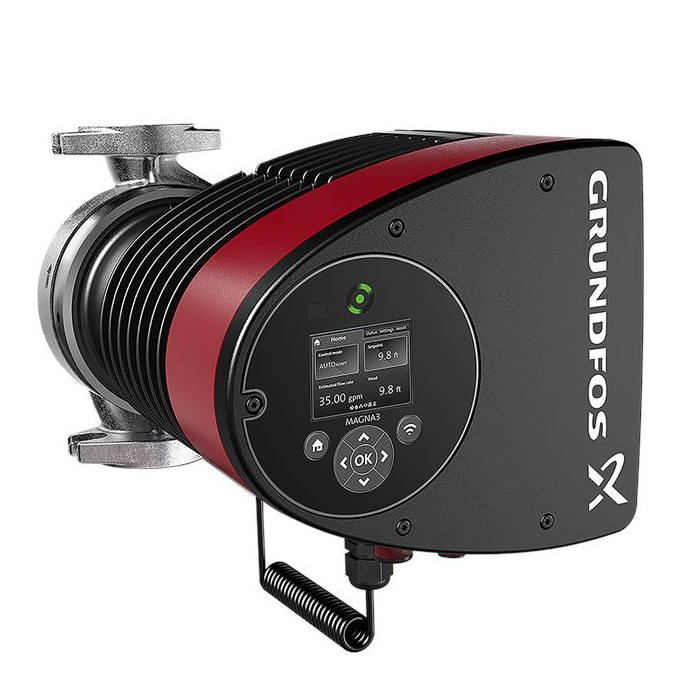

98126838 Grundfos MAGNA3 40-180 F Stainless Steel Flange Mount Circulator Pump 208/230V 3/4 HP 1PH Variable Speed
Part #GRUMAGNA340180230SS
MFG #98126838
Manufacturer Name : Grundfos
- Circulator Pump
- Type Canned Rotor, Compact, Single Head
- Applicable Standard ANSI/UL 778, CAN/CSA C22.2, ETL (Canada and US)
- Suction Size 40 MM
- Discharge Size 40 MM
- End Connection Flanged x Flanged
- Overall Dimensions 14.73" Length x 10.83" Width x 8.5" Height
- Flow Rate 346 GPM
- Discharge Head 180 Decimeter
- Casing Material Stainless Steel
- Shaft Material 316L Stainless Steel
- Impeller Material Polyethersulfone
- Warranty 24 Month Limited from Date of Installation, 30 Month Limited from Date of Manufacture
- Power Rating 3/4 HP
- Input Supply Rating 607 Watt at 208 to 230 Volt 50/60 Hertz 1 Phase 2.68 Amp
- Temperature Rating 14 to 230 Deg F
- Pressure Rating 175 PSI
- Motor Type Synchronous, Permanent Magnet, 4 Pole
- Inclusions/Features Aluminum Oxide Bearing Ring, Polycarbonate Control Box, Heat Energy Meter, Intuitive User Interface with TFT Display, Built-In Grundfos Differential Pressure and Temperature Sensor, Internal Motor Protection, Proportional-Pressure Control, Constant-Pressure Control, Constant-Temperature Control, Constant-Curve Duty, Automatic Night Setback
- Application Heating Systems, Air-Conditioning and Cooling Systems, Domestic Hot-Water Systems, Ground Source Heat Pump Systems, Solar-Heating Systems, Heating Surfaces
- Material Aluminum Stator Housing, EPDM O-Ring, Polypropylene Sulfide Rotor Can
- Net Weight 35 Lb
- Gross Weight 41 Lb
- Install Instructions
Specification Sheet - The MAGNA3 N offers all of the features of a MAGNA3 in stainless-steel, if the media requires this, for example in domestic-hot water applications. The MAGNA3 has integrated Bluetooth allowing it to connect directly with the Grundfos GO APP.
