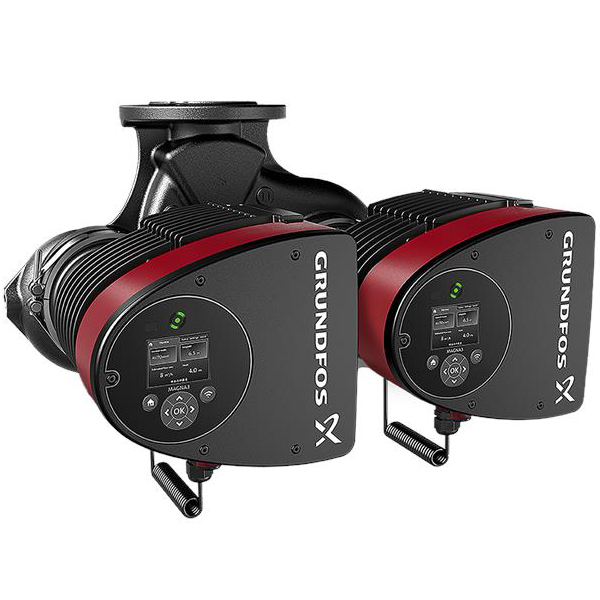

98126863 Grundfos MAGNA3 D 65-150 F Cast Iron Circulator Twin Pump 208/230V 1-1/2 HP 1PH Variable Speed
Part #GRUMAGNA365150D208/230
MFG #98126863
Manufacturer Name : Grundfos
- Circulator Pump
- Type Canned Rotor, Compact, Twin Head
- Applicable Standard ANSI/UL 778, CAN/CSA C22.2, ETL (Canada and US)
- Suction Size 65 MM
- Discharge Size 65 MM
- End Connection Flanged x Flanged
- Overall Dimensions 20.55" Width x 13.4" Height
- Flow Rate 570 GPM
- Discharge Head 150 Decimeter
- Casing Material Cast Iron
- Shaft Material 316L Stainless Steel
- Impeller Material Polyethersulfone
- Warranty 24 Month Limited from Date of Installation, 30 Month Limited from Date of Manufacture
- Power Rating 1.5 HP
- Input Supply Rating 1301 Watt at 208 to 230 Volt 50/60 Hertz 1 Phase 5.68 Amp
- Temperature Rating 14 to 230 Deg F
- Pressure Rating 175 PSI
- Motor Type Synchronous, Permanent Magnet, 4 Pole
- Inclusions/Features Aluminum Oxide Bearing Ring, Polycarbonate Control Box, Heat Energy Meter, Intuitive User Interface with TFT Display, Built-In Grundfos Differential Pressure and Temperature Sensor, Internal Motor Protection, Proportional-Pressure Control, Constant-Pressure Control, Constant-Temperature Control, Constant-Curve Duty, Automatic Night Setback
- Application Heating Systems, Air-Conditioning and Cooling Systems, Domestic Hot-Water Systems, Ground Source Heat Pump Systems, Solar-Heating Systems, Heating Surfaces
- Material Aluminum Stator Housing, EPDM O-Ring, Polypropylene Sulfide Rotor Can
- Net Weight 98 Lb
- Gross Weight 118 Lb
- Install Instructions
Specification Sheet - The Grundfos MAGNA3 D circulator pump is the ideal choice for almost any building project – old or new. With its unrivalled energy efficiency, all-encompassing range and built-in communication capabilities, MAGNA3 D is ideal for engineers and specifiers looking to create high-performance heating and cooling systems. The pump is maintenance-free due to the canned-rotor type design. This also means that pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. MAGNA3 D offers three multipump modes: Alternating, backup and cascade operation.
