Part #GRUUPS43100SF230

MFG #95906639

Specifications

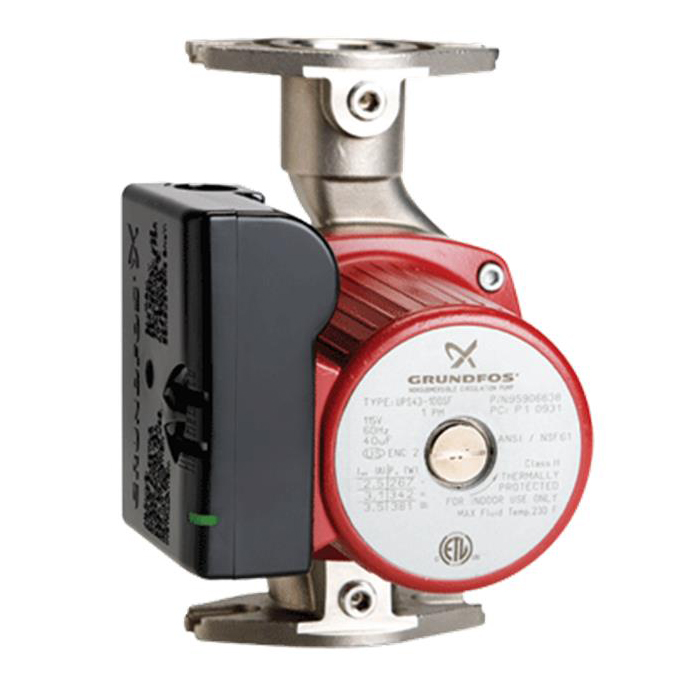

• Circulator Pump
• Type Wet Rotor, 3-Speed, In-Line
• Applicable Standard ANSI/NSF 61, CSA, CUL, ETL (Canada and US), UL, UL (Canada and US)
• End Connection GF 40/43 Flanged x GF 40/43 Flanged
• Overall Dimensions 6.69" Length x 8.5" Height
• Flow Rate 0 to 65 GPM
• Discharge Head 100 Decimeter
• Casing Material Stainless Steel
• Shaft Material Aluminum Oxide Ceramic
• Impeller Material Polyethersulfone Composite
• Impeller Design Open
• Warranty 36 Month Limited from Date of Manufacture
• Shaft Seal Details Ceramic Face
• Power Rating 1/3 HP
• Input Supply Rating 370 Watt at 208 to 230 Volt 60 Hertz 1 Phase 1.7 Amp
• Temperature Rating 36 to 230 Deg F Liquid for Open System
• Pressure Rating 145 PSI
• Motor Type Permanent Split Capacitor, 2 Pole
• Options Stainless Steel Flange with Terminal Box
• Inclusions/Features Whisper Quiet Operation, Built-In Timer, Line-Cord and Aquastat, Unique Wet Rotor Design, Check Valve, Saves Upto 12000 Gallons
• Application Solar Water Heating, Hot-Water Recirculation, Domestic Hot-Water Heating, Cooling Systems, Residential or Light Commercial
• Material Aluminum Stator Housing, EPDM Rubber O-Ring, Stainless Steel Rotor Can
