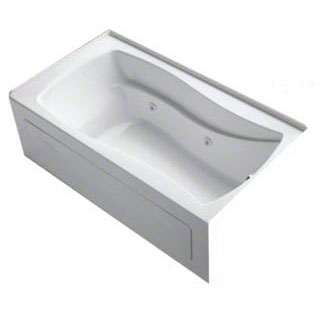

MARIPOSA 5.5 WP INT APN USA RH 120V HEAT
Part #K1224HRWHI
MFG #1224-HR-0

Manufacturer Name : Kohler
- Whirlpool Bathtub
- Type Alcove
- Shape Hourglass in Rectangle
- Applicable Standard ASME A112.19.7, UL 1795, ANSI Z124.1.2, ASTM E162/E662
- Length 66"
- Width 35-7/8"
- Height 20"
- Water Depth 14"
- Material Acrylic
- Color/Finish White
- Water Capacity 67 Gallon
- Number of Jets 5
- Drain Location Right
- Drain Connection 1-1/2"
- Tub Details Integral Apron with Removable Access Panel, Integral Tile Flange, Textured Bottom Surface
- System Features 5 Hydromassage Jet, Pump with Air Switch and Grounding Type Plug-In Cord, In-Line Heater
- Power Rating 1.5 Kilowatt
- Input Supply Rating 120 Volt 60 Hertz 15 Amp
- Optional Accessories K-1234 Removable Apron, K-9695 5 Jet Trim Kit
- Recommended Accessories K-7161-AF Pop-Up Drain, K-7213 Clear?o Bath Cable Drain with PVC Tubing, K-7214 Clear?o Bath Cable Drain without PVC Tubing
- Bathing Well Dimension 48" x 24" Bottom, 59" x 30" Top
- Weight 110 Lb
- Warranty 1 Year Limited
- Install Instructions
Specification Sheet - With Delicate Curves and an Hourglass Shape, the Mariposa Bath Brings Harmony to Your Bathroom Design; Whirlpool Jets Massage Away the Day Tension as the Built-In Heater Keeps Your Bath at the Perfect Temperature; A Slip-Resistant Bottom Surface Offers Extra Traction and Safety; Hydrotherapy; Single-Speed Whirlpool Offers Performance and Value, with 5 Fully Adjustable Jet; Pump with Air Switch, In-Line Heater; Hydromassage Flow and Direction can be Controlled at Each Jet; Hourglass Shape Adds Style and Elegance to Your Bathroom; Integral Apron; Tile Flange Helps Prevent Water from Seeping Behind Wall and Simplifies Alcove Installation; Textured Bottom Surface; 1 Year Limited Warranty
