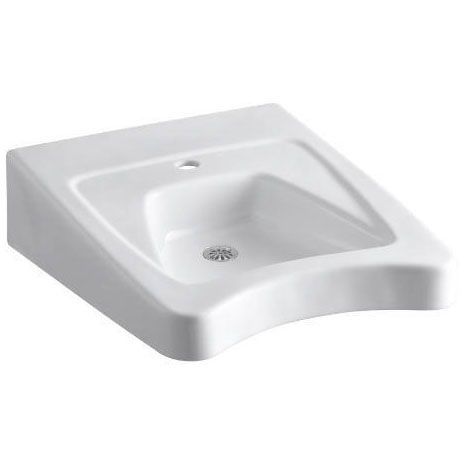

K12638 WHI 27X20 LAV 1-H W/H LAV
Part #K12638WHI
MFG #12638-0
Color/Finish : White
Faucet Holes : 1
Installation : Top/Wall Mount
Manufacturer Name : Kohler
Material : Vitreous China
- Bathroom Sink
- Type Single Bowl, Wall Mount, Wheelchair
- Applicable Standard ADA, ASME A112.19.2/CSA B45.1, ICC/ANSI A117.1
- Length 20"
- Width 27"
- Height 7-1/8"
- Rough-In 12-3/8"
- Material Vitreous China
- Color/Finish White
- Drain Connection 1-1/4"
- Overflow Style Front
- Number of Holes 1
- Faucet Hole Center Single
- Inclusions/Features Drilled for Concealed Arm Carrier
- Faucet Hole Size 1-3/8"
- Drain Hole Size 1-3/4"
- Bowl Size 14" Length x 13" Width
- Water Depth 2-5/8"
- Recommended Accessories K-8998 P-Trap, K-7131-A Offset Drain
- Warranty 1 Year Limited
- Install Instructions
Specification Sheet - Made from Premium Materials that Withstand High Volume Usage, the Morningside Wheelchair Lavatory is an Ideal Choice for Commercial Applications; This Wall Mount Model Includes a Single-Hole Faucet Drilling; Drilled for Concealed Arm Carrier; ADA Compliant when Installed with K-13885 Offset Drain; 1 Year Limited Warranty
