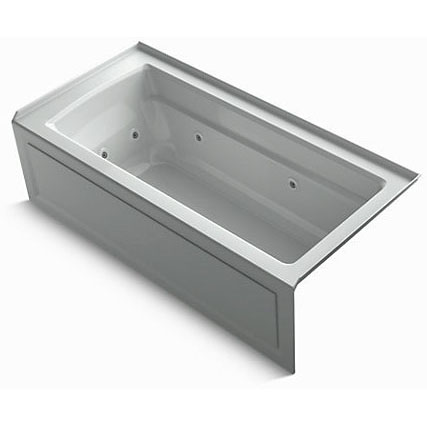

Ice Grey Archer 66" X 32" Alcove Whirlpool Bath With Integral Apron And Right Hand Drain
Part #K1949RAICG
MFG #1949-RA-95
Manufacturer Name : Kohler
- Bathtub
- Type Alcove
- Shape Rectangle in Rectangle
- Length 66 Inch
- Width 32 Inch
- Height 19 Inch
- Water Depth 15-5/16 Inch
- Material Acrylic
- Color/Finish Ice Gray
- Water Capacity 66 Gallon
- Number of Jets 8 Fully Adjustable Jet
- Drain Location Right
- Drain Connection 1-1/2 Inch
- Tub Details Hydro-Massage Flow and Direction, Molded Lumbar Support, Slotted Overflow, Textured Bottom Surface, Integral Apron, Integral Flange
- System Features 1-Speed Whirlpool Offer Performance and Value
- Input Supply Rating 120 Volt AC 60 Hertz 7 Amp (Pump)
- Applicable Standard ADA, UL, ASME A112.19.7/CSA B45.10, CSA B45.5/IAPMO Z124, ICC/ANSI A117.1
- Basin Area Dimension 50-3/8 Inch x 19-5/8 Inch (Bottom), 57-5/16 Inch x 24-1/16 Inch (Top)
- Minimum Floor Load Rating 47 Pound per Square Foot
- Minimum Flat Size 2-3/16 Inch
- Install Instructions
Specification Sheet - Single Speed Whirlpool Offer Performance and Value, with 8 Fully Adjustable Jet; Hydro-Massage Flow and Direction can be Controlled at Each Jet; Comfort Depth Design Offer a Convenient 19 Inch Step-Over Height While Retaining the Same Depth as a Standard 21 Inch Bath; Molded Lumbar Support Offer Extra Comfort While Bathing; Slotted Overflow Allow for Deep Soaking; Integral Apron; Integral Flange Help Prevent Water from Seeping Behind Wall and Simplifies Alcove Installation; Textured Bottom Surface; Right-Hand Drain; Coordinate with Other Product in the Archer Collection; Greenguard Gold Certified; ADA Compliant
