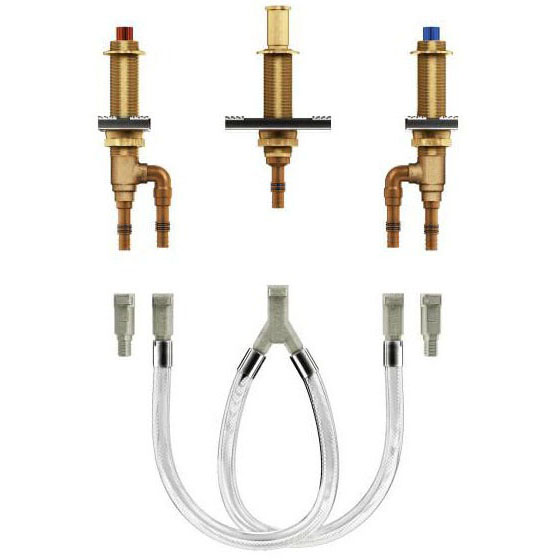

4794 M-Pact Two Handle Roman Tub 1/2" Expansion Pex Crimp Ring Pex Rough In Valve 10" Center
Part #M4794
MFG #4794
Manufacturer Name : Moen
- Tub/Shower Valve
- Type Adjustable
- Applicable Standard ASME A112.18.1, CSA B125.1, ASTM F1807, CSA B137.5, ASTM D2846, CSA B137.6
- Inlet Size 1/2"
- Handle Material Metal
- Valve Material Metal
- Number Of Valves/Handles 2
- Inlet Connection PEX, CPVC
- Outlet Connection 1/2" PEX, 1/2" CPVC
- Flow Rate 13 GPM at 45 PSI
- Inclusions/Features 10" Centers, 1-1/4" Additional Finish Deck, 24" Quick Connect Hoses, (2) 1/2" Cold Expansion PEX Adapters, Test Plug, Rotate Hot Side Handle Counterclockwise to Open (Clockwise to Close) and the Cold Side Handle Clockwise to Open (Counterclockwise to Close), Spout Shank Tool, Cartridge
- Used On Item Tub
- Used On Model/Brand Roman
- Exclusions Cut Adjustable Spout Shank
- Warranty 5 Year (Commercial), Lifetime Limited
- Install Instructions
Specification Sheet - Changing the Look of Your Bathroom Has Never Been Faster and Easier; The M-Pact Common Valve System Allows You to Upgrade the Trim Style or Swap Out Finishes on Your Fixtures without Replacing the Valves; So Once the System is in Place You Can Change Your Decor as Often as You Want at any Point In-Time-During Construction Process or Years Down the Road; All it Takes is a Few Minutes; Best of All the M-Pact Common Valve System is as Easy to Install as a Standard Valve; Equipped with the Moentrol Pressure-Balancing Control Valve: Control Allows You to Adjust Both Water Volume and Temperature; Pressure-Balancing Feature Helps Maintain Temperature Even when Other Water Sources in the House are in Use; Built on the MOEN M-Pact Common Valve System Allowing You to Update the Faucet Style in the Future without Replacing any Plumbing; Rotate Hot Side Handle Counterclockwise to Open (Clockwise to Close) and the Cold Side Handle Clockwise to Open (Counterclockwise to Close), Cartridge; 5 Year for Commercial, Lifetime Limited Warranty
