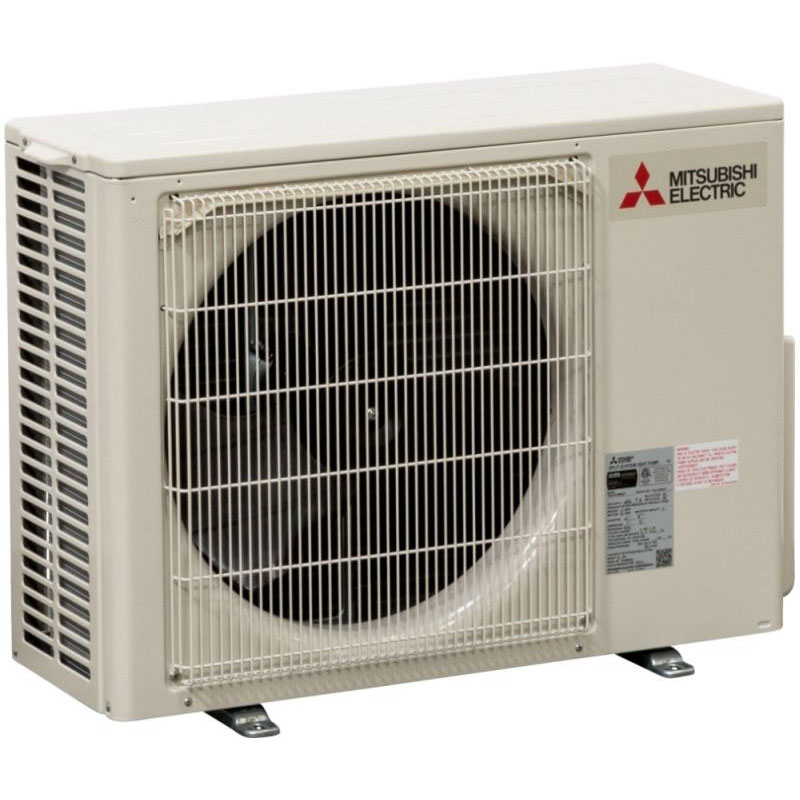

PUY-A12NKA7 Mitsubishi 12,000 BTU Universal Single-Zone Low Ambient Cooling Mini Split Outdoor Unit R410A
Part #MITPUYA12NKA7
MFG #PUY-A12NKA7
Cooling Capacity (BTU) : 12000
Heating Capacity (BTU) : No Heating
Manufacturer Name : Mitsubishi
Unit Type : Outdoor
Zones : Single-Zone
- Air Conditioner Outdoor Unit
- Type Single Zone
- Voltage Rating 208/230 Volt AC
- Current Rating 0.33 Amp (Motor)
- Frequency Rating 60 Hertz
- Number of Phases 1
- Power Rating 1000 Watt
- Cooling Capacity 12000 BTU/HR
- Temperature Control Type Thermostat
- Connection Type Terminal Block
- Operating Temperature 115 Deg F Dry (Cooling)
- Enclosure Finish Ivory, Munsell 3Y 7.8/1.1
- Size 32-1/4" Width x 11-3/16" Depth x 24-13/16" Height
- Weight 92 Lb
- Approval ETL (Canada and US)
- Refrigerant Type R410A
- Compressor Type Driven Twin Rotary Inverter
- Airflow Rating 1590 CFM
- Energy Efficiency Ratio 20.8 SEER, 12 EER
- Minimum Circuit Ampacity 11 Amp
- Refrigerant Pipe Size 1/2" (Gas), 1/4" (Liquid)
- Sound Level 46 dB
- Applicable Standard AHRI
- Warranty 5 Year Limited (Parts), 7 Year Limited (Compressor)
- Install Instructions
Specification Sheet - Variable Speed Inverter-Driven Compressor. Suction Accumulator Precharged with Refrigerant Volume for Piping Length Up to 100'. High Pressure Protection.
