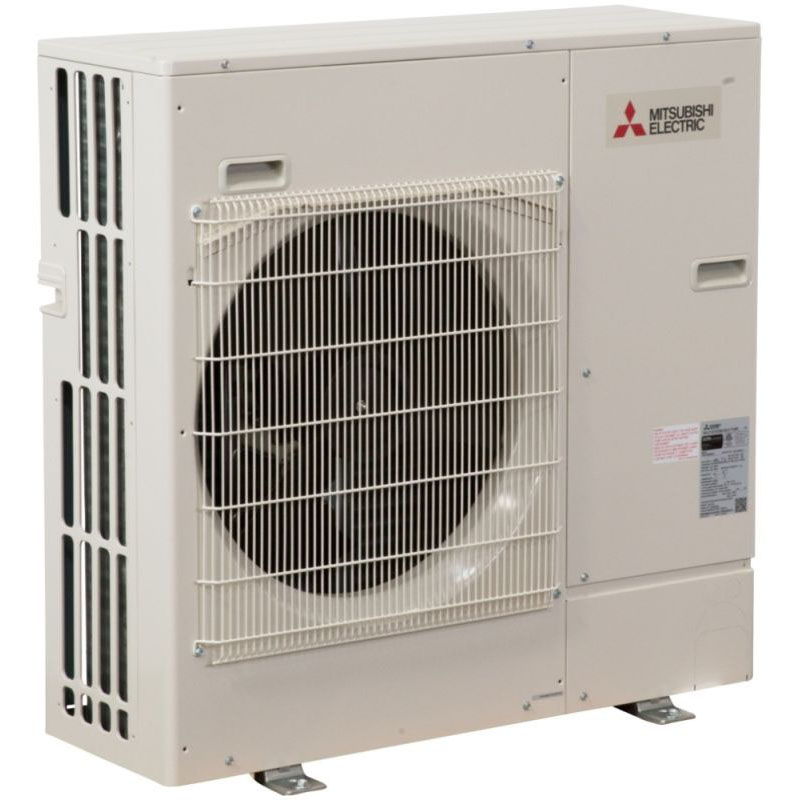

PUY-A30NHA7 Mitsubishi 30,000 BTU Universal Single-Zone Low Ambient Cooling Mini Split Outdoor Unit R410A
Part #MITPUYA30NHA7
MFG #PUY-A30NHA7
Cooling Capacity (BTU) : 30000
Heating Capacity (BTU) : No Heating
Manufacturer Name : Mitsubishi
Unit Type : Outdoor
Zones : Single-Zone
- Air Conditioner Outdoor Unit
- Type Single Zone
- Voltage Rating 208/230 Volt AC
- Current Rating 0.4 Amp (Motor)
- Frequency Rating 60 Hertz
- Number of Phases 1
- Power Rating 3150 Watt
- Cooling Capacity 30000 BTU/HR
- Temperature Control Type Thermostat
- Connection Type Terminal Block
- Operating Temperature 115 Deg F Dry (Cooling)
- Enclosure Finish Ivory, Munsell 3Y 7.8/1.1
- Size 37-13/32" Width x 14-3/16" Depth x 37-1/8" Height
- Weight 151 Lb
- Approval ETL (Canada and US)
- Refrigerant Type R410A
- Compressor Type Driven Twin Rotary Inverter
- Airflow Rating 1940 CFM
- Energy Efficiency Ratio 19.8 SEER, 9.5 EER
- Minimum Circuit Ampacity 19 Amp
- Refrigerant Pipe Size 5/8" (Gas), 3/8" (Liquid)
- Sound Level 48 dB
- Applicable Standard AHRI
- Warranty 5 Year Limited (Parts), 7 Year Limited (Compressor)
- Install Instructions
Specification Sheet - Variable Speed Inverter-Driven Compressor. Suction Accumulator Precharged with Refrigerant Volume for Piping Length Up to 100 foot. High Pressure Protection.
