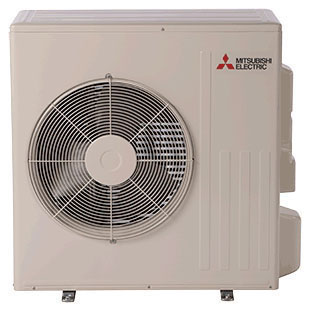

SUZ-KA24NA2.TH Mitsubishi 24,000 BTU Universal Single-Zone Heat Pump Mini Split Outdoor Unit R410A
Part #MITSUZKA24NA2TH
MFG #SUZ-KA24NA2.TH
Cooling Capacity (BTU) : 24000
Heating Capacity (BTU) : 24000
Manufacturer Name : Mitsubishi
Unit Type : Outdoor
Zones : Single-Zone
- Air Handler Heat Pump System
- Type 1-Zone, Universal, Outdoor
- Voltage Rating 208/230 Volt AC
- Current Rating 2.4 Amp (Fan Motor)
- Frequency Rating 60 Hertz
- Number of Phases 1
- Power Rating 1920 Watt at 95 Deg F (Cooling), 2270 Watt at 47 Deg F (Heating)
- Cooling Capacity 24000 BTU/Hour
- Temperature Control Type Thermostat
- Operating Temperature 14 to 115 Deg F (Cooling), 14 to 75 Deg F (Heating)
- Enclosure Finish Ivory Munsell
- Size 33-1/16 Inch Width x 13 Inch Depth x 34-5/8 Inch Height
- Weight 129 Pound
- Approval ETL (Canada and US)
- Refrigerant Type R410A
- Energy Efficiency Ratio 18 SEER, 10.4 HSPF
- Heating Capacity 28000 BTU/Hour at 47 Deg F
- Minimum Circuit Rating 17 Amp
- Airflow Rating 1930 to 2020 CFM
- Power Factor 98 Percent (Cooling), 99 Percent (Heating)
- Heat Exchanger Type Plate Fin Coil
- Compressor Motor Type Driven DC Inverter
- Applicable Standard AHRI
- Install Instructions
Specification Sheet - Variable Speed Inverter-Driven Compressor. Innovative Joint Lap DC Motor Leads to High Efficiency and Reliability. Pulse Amplitude Modulation Technology. High-Performance Grooved Piping for Increased Heat Exchange Efficiency. Energy Star Rated.
