Part #RINE75CRP

MFG #E75CRP

Specifications

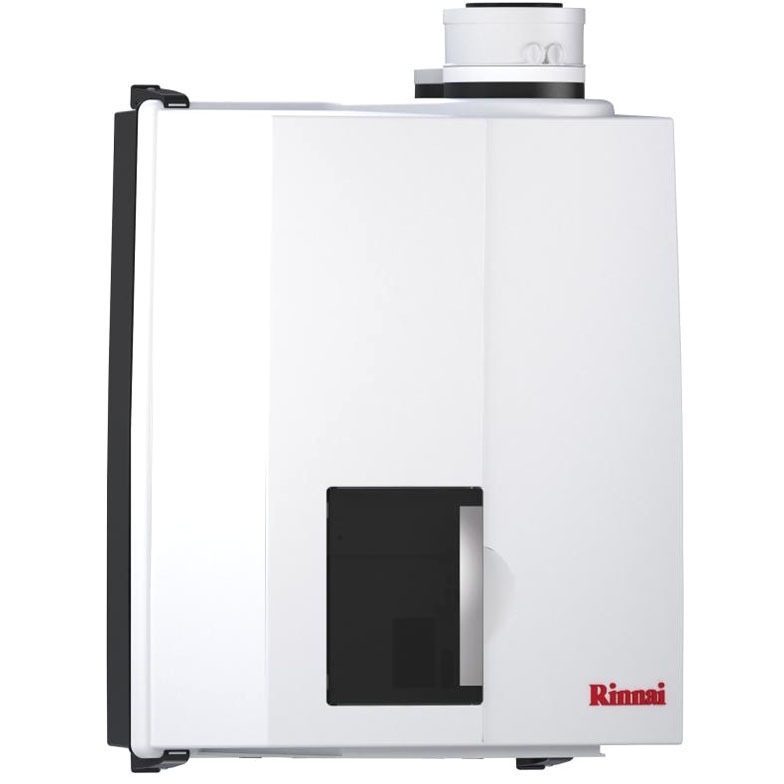

• Combination Condensing Gas Boiler
• Type Hot Water, Sealed Combustion
• Applicable Standard CSA (Canada and US), ASME H, NSF/ANSI 372
• Supply Connection 1" Male Threaded
• Return Connection 1" Male Threaded
• Gas Type Propane
• Gas Connection 3/4" Male Threaded
• AGA Input Rating 75 MBH
• DOE Heating Capacity 69 MBH
• AFUE Rating 95.5 Percent
• Boiler Dimensions 19.7" Length x 15.6" Width x 25.6" Height
• Boiler Height Including Draft Hood 30.9" (Coaxial), 34.2" (Parallel)
• Boiler Material Stainless Steel (Heat Exchanger)
• Water Content 0.9 Gallon
• Ignition Type Spark
• Burner Type Modulating Ceramic Premix
• Venting Type Direct
• Relief Valve Details 30 PSI Relief Valve Supplied
• GPH Recovery 2.1 GPM at 75 Deg F (DHW)
• Pressure Rating 45 PSI
• Mounting Type Wall Mount
• Warranty 12 Year Limited (Heat Exchanger), 1 Year Limited (Labor), 2 Year Limited (Parts) Residential
• Options RS100 Single Zone Controller, Flue Gas Temperature Sensor, Room Air Filter, Flow Switch Conversion Kit, Low Loss Header Plumbing Kit, Low Loss Header Side Mount Kit
• Inclusions/Features Twin Pipe Venting Adapter, Factory Installed Boiler/System Modulating Pump, Onboard Outdoor Reset Control System with Sensor
• Boiler Type Water
• Fuel Gas
• With Domestic Hot Water Yes
• AFUE 95.5%
• Vent Type Direct Vent
• Mount Wall
• Heat Exchanger Material Stainless Steel
• Voltage Rating 120 Volt AC at 60 Hertz
• Warranty 12 Year Limited (Heat Exchanger), 1 Year Limited (Labor), 2 Year Limited (Parts) Residential
