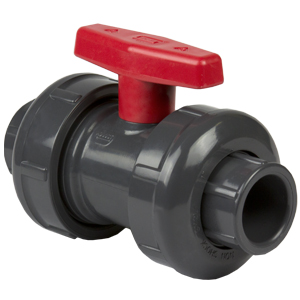

2332-040 4" PVC 80 Socket X Socket Viton True Union Ball Valve
Part #SPE2332040
MFG #2332-040
End Connection : Socket Weld
Manufacturer Name : Spears
Material : PVC Plastic
Valve Size : 4"
- Ball Valve
- Type True Union, Full Bore
- Applicable Standard NSF
- Actuation Type 1/4 Turn
- Nominal Size 4"
- End Connection Socket x Socket
- End to End Distance 13-3/16"
- Ball Material ASTM D1784 Molded PVC
- Body Material ASTM D1784 Molded PVC
- Stem Material ASTM D1784 Molded PVC
- Seat Material PTFE
- Seal Material FKM
- Handle Material Polypropylene
- Port Type Regular
- Temperature Rating 140 Deg F
- Pressure Rating 150 PSI at 73 Deg F
- Inclusions/Features Chemical and Corrosion Resistant, Strong Buttress Thread Union Nut, Fully Serviceable, Self Adjusting PTFE Floating Seat Design, Silicone-Free and Water Soluble Lubricant
- Application Industrial, Chemical, Potable Water, Vacuum Service
- Schedule 80 S
- Optional Accessories Round Safety Handle, Stem Extension Kit, 2" Square/T-Style Operator Nut
- Color Gray
- Packaging Quantity 1 Per Box
- Weight 18.16 Lb
- Warranty Lifetime Limited
- Install Instructions
MSDS Sheets
Specification Sheet - Chemical and Corrosion Resistant; Buttress Threaded Double Union Nuts; Stops Flow in Either Direction, Allowing Safe Removal of the Downstream Union Nut for System Service or Modification; Seat Design Reduces Seat Wear for Extended Valve Life, Smooth Operation and Bubble Tight Shut Off; Choice of High Grade, Abrasion Resistant FKM Elastomer O-Rings Allows Application Specific Selection for Optimum Chemical Resistance; Suitable for Vacuum Service; Assembled with Silicone Free, Water Soluble Lubricants; Developed to Help Prevent Line Fluids from Leaking Out in the Event of Ball Valve Stem Damage; Engineered for High Strength, the Stem incorporates a Special Shear Point to Control Accidental Breakage; Lifetime Limited Warranty; Made in the U.S.A.
