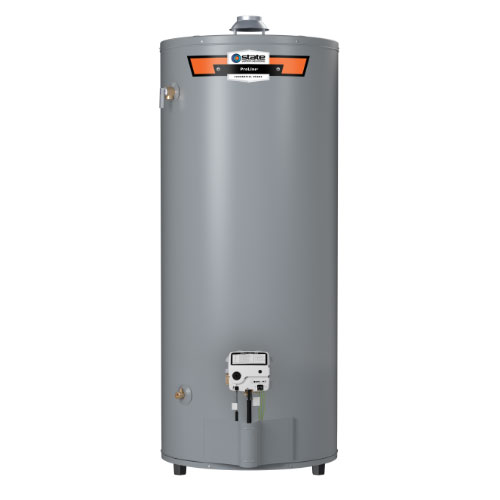

GSX-100-XRRT State 100 Gallon 10 Year Atmospheric Vent Natural Gas Water Heater
Part #STAGSX100XRRT
MFG #GSX-100-XRRT
Capacity : 100 Gallons
Manufacturer Name : State
Option : Tall
Type : Natural Gas
Warranty : 10 Years
- Residential Gas Water Heater
- Type Tall
- Applicable Standard ANSI Z21.10.1, CSA 4.1, ASME, NAECA, UBC, CEC, SBCC, CABO, BOCA, HUD
- Inlet/Outlet Connection 1-1/4" x 1-1/4"
- Gas Type Natural
- Gas Connection 1/2"
- Relief Valve Details T and P Relief Valve Supplied
- Draft Hood Outlet/Vent Size 4"
- Input Supply Rating 75100 BTU/HR
- Tank Dimensions 27-3/4" Diameter x 65" Height
- Tank Height Including Draft Hood 68-1/2"
- Tank Material Glass Lined
- Tank Capacity 100 Gallon
- Tank Warranty 10 Year Limited
- GPH Recovery 81 GPH at 90 Deg F
- R-Factor R-10
- Ignition Type Easy to Light Piezo
- Drain Valve Details Tamper Resistant Brass
- Burner Type Green Choice Low Nox
- Energy Saver Conformance No
- Options Top Mounted T and P valve
- Inclusions/Features Aluminum Anode Rod, Intelligent Control Logic, Self-Powered Electronic Gas Valve, Diagnostics, Diffuser Dip Tube
- Maximum Hydrostatic Working Pressure 150 PSI
- Warranty 6 Year Limited on Parts
- Install Instructions
Specification Sheet - The Proline High Recovery gas water heater capacity/input combinations up to 98 gallons/75,100 BTU's produce recoveries up to 81 gallons per hour. Featuring a 98-gallon (nominal) tank and a 75,100 BTU propane burner, the GSX-,100-XRRTL Atmospheric Vent delivers a recovery rate of 81 gallons per hour. This water heater is not Energy Star qualified. It carries a 10-year limited tank warranty, and meets Low NOx emission requirements.
