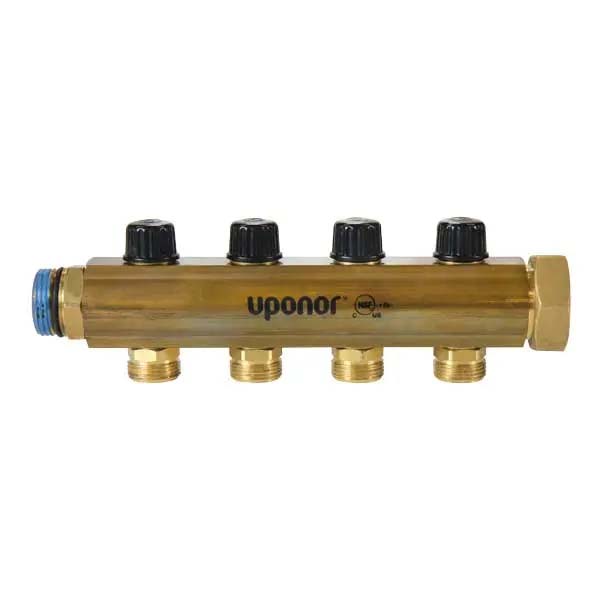

A2663214 Uponor 4 Loop Truflow Manifold With Balancing Valve
Part #UPOA2663214
MFG #A2663214
Manufacturer Name : Uponor
- Junior Modular Manifold Balancing Valve
- Applicable Standard ASTM F877, NSF-RFH
- Port Size 1-1/4" (R32) Inlet, 3/4" (R20) Outlet
- Length 9.6"
- Height 3.07"
- Header Pipe Size 1-1/4" Inner Diameter
- Number of Ports 4
- End Connection Union x Male Threaded
- Body Material Brass
- Temperature Rating 220 Deg F
- Pressure Rating 145 PSI
- Maximum Flow Rate 14 GPM
- Loop Flow Rate 1.9 GPM
- Inclusions/Features Balancing Valves
- Application Radiant Heating and Cooling Systems, Snow and Ice Melting Systems, Permafrost Prevention Systems, Permafrost Prevention Systems
- Packaging Quantity 1
- Weight 3.9 Lb
- Warranty 25 Year Limited
- Install Instructions
Specification Sheet - Truflow Jr. supply manifolds with balancing valves are used in conjunction with either the Truflow Jr. modular manifolds with isolation valves or the Truflow Jr. modular valveless manifolds to complete the manifold set. The Truflow Jr. supply manifolds with balancing valves allow manual flow balancing of the individual loops on the manifolds. Manifolds are available in 2- to 4-loop configurations depending on model. The manifold body (1" barrel diameter) ends have R32 threads as shown in the picture. Maximum recommended flow to the manifold is 14 gpm.
