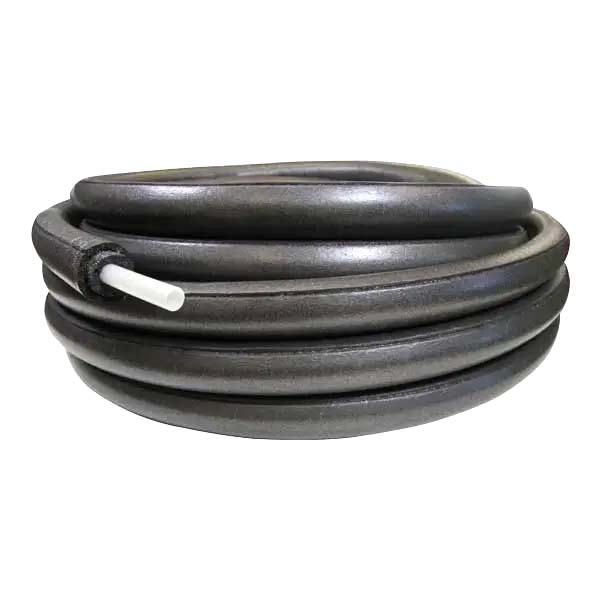

A6171500 Uponor Wirsbo hePEX 1-1/2" X 50' Pre-insulated Type A Heat PEX Tubing Coil With 2" Insulation
Part #UPOA6171500
MFG #A6171500
Application : Hydronic
Color : Black
Inside Diameter : 1-1/2" ID
Length : 50'
Manufacturer Name : Uponor
Material : Cross Linked Polyethylene
Type : Coil
- Tubing
- Outside Diameter 5.88 Inch
- Length 50 Foot Coil
- End Connection PEX x PEX
- Material Crosslinked Polyethylene
- Material Specification ASTM F876/F877/F1960/F2023
- Process Engel
- Pressure Rating 160 PSI at 73.4 Deg F
- Temperature Rating 200 Deg F
- Weight 56.3 Pound
- Application Radiant Heating and Cooling System, Hydronic Heating and Cooling System, Snow and Ice Melting System, Permafrost Protection System, Turf Conditioning System
- Applicable Standard CSA B137.5, NSF/ANSI 14/61, HUD, ICC, IMC, UMC, IPC, UPC, NSPC, IRC, NBC, NPC, UFGS, CCMC, UL, CSA, IAPMO, ICC-ES, ITS, PPI TR-4, CNSFUS-RFH, CNSFUS-PW, ASHRAE
- Type Pre-Insulated
- Nominal Size 1-1/2 Inch
- Coil Size 58 Inch x 13.5 Inch
- R-Value 15.4
- Thermal Conductivity 0.22 BTU/Hour/Square Foot/Deg F
- Linear Expansion Rate 1.1 Inch/10 Deg F/100 Foot
- Includes 2 Inch Polyethylene Foam Insulation
- Specification Sheet
- Uponor's pre-insulated PEX pipe offering complies with ASHRAE 90.1-2013 and the 2012 International Energy Conservation Code (IECC). The pipe is available in 1/2" to 2" configurations with 1/2", 1", 11/2" and 2" insulation that features manufactured sealed seams that run the entire length of the coil. Check with local code authorities regarding energy-code requirements for specific applications.
