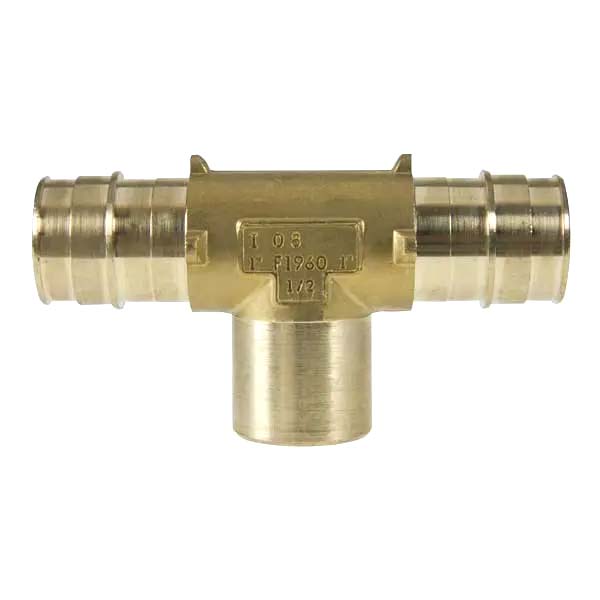

LF7701010 Uponor ProPEX 1" Pex X 1" Pex Cold Expansion X 1/2" FPT Tee
Part #UPOLF7701010
MFG #LF7701010
End Connection : Pex Expansion X Pex Expansion X Female Thread
Fitting Size : 1" X 1" X 1/2"
Fitting Type : Tee
Manufacturer Name : Uponor
Material : Brass
- Tee Fitting
- Type Sprinkler Adapter, Reducing
- Applicable Standard ANSI/NSF 14/61, CAN/CSA B137.5, ICC ESR 1099, IAPMO, UL 1821, ULC/ORD – C199P, HUD MR 1269
- Nominal Size 1" x 1" x 1/2"
- End Connection PEX x PEX x Female Threaded
- Material C69300 Brass
- Material Specification ASTM F877/F1960
- Application Plumbing System, Fire Safety System, Potable Water
- Lead Free
- Weight 0.62 Lb.
- Packaging Quantity 5
- Overall Dimension 4.09" Length x 2.32" Height
- Warranty 25 Year
- Install Instructions
Specification Sheet - ProPEX LF brass fire sprinkler adapters connect residential fire sprinklers to Uponor AquaPEX tubing. Made of lead-free brass with ProPEX outlets, the adapter is NSF- and UL-approved for combined plumbing and fire sprinkler systems. Note- Installation requires one Fire Sprinkler Adapter Mounting Bracket (A7750700) and one Push-on Nut (F7000005) for each LF brass fire sprinkler adapter. Mount the bracket using #10 x 1 1/2" screws (F7001500) or equivalent. ProPEX tool is required. ProPEX rings sold separately.
