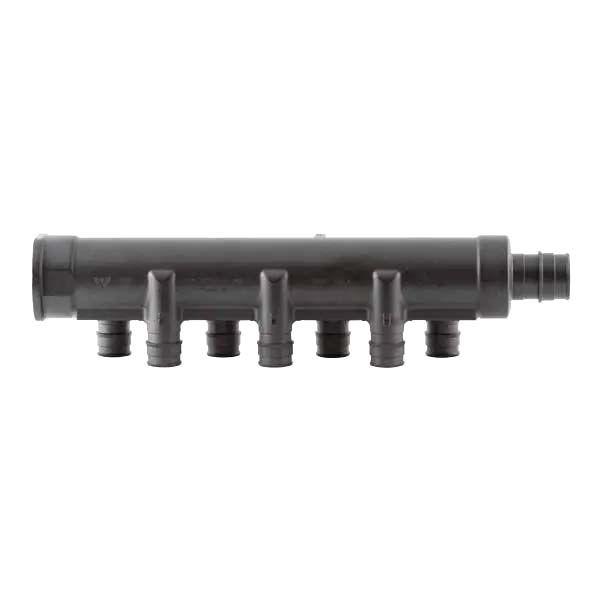

Q2287550 Uponor 3/4" EP Multi Port Tee With 8 Outlets
Part #UPOQ2287550
MFG #Q2287550
Manufacturer Name : Uponor
- Multiport Tee
- Applicable Standard ASTM F877, ASTM F1960, CAN/CSA B137.5, IPC, UPC, NSPC, NPC (Canada), ANSI/NSF 14/61, ICC ESR 1099, IAPMO 3946
- Port Size 3/4" Inlet, 1/2" Outlet
- Length 9.5"
- Width 1.77"
- Height 2.1"
- Number of Ports 8
- End Connection PEX x PEX
- Body Material Engineered Polymer
- Temperature Rating 210 Deg F
- Pressure Rating 150 PSI
- Application Commercial, PEX-a Plumbing Systems
- Packaging Quantity 1
- Weight 0.362 Lb
- Warranty 25 Year System
- Install Instructions
Specification Sheet - Commercial EP branch multi-port tees feature an integrated 3/4" or 1" ProPEX inlet with 1/2" ProPEX branch outlets, or a 1 1/4" ProPEX inlet with 3/4" ProPEX branch outlets. Designed for commercial plumbing applications, they eliminate the need for multiple connections. The tees are made of EP, which is proven in demanding hot-water applications. The 3/4" and 1" tees come with mounting clips and screws.
