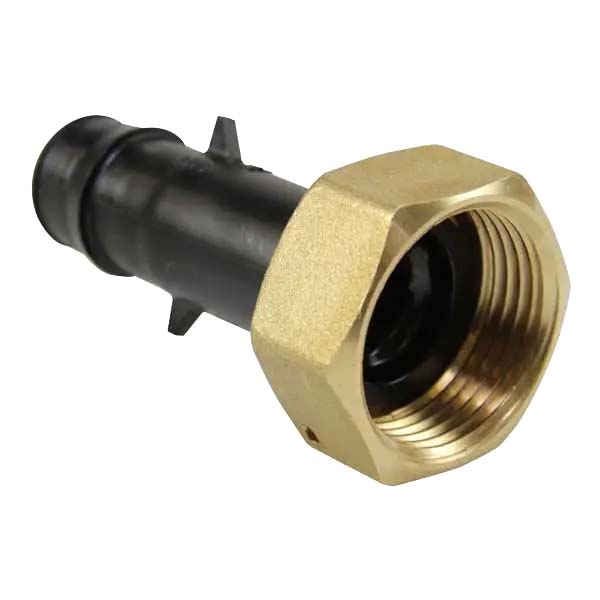

WS4360750 Uponor ProPEX 3/4" X 1" Pex Cold Expansion X NPSM EP Water Meter Fitting
Part #UPOWS4360750
MFG #WS4360750
End Connection : Pex Expansion X Female NPSM
Fitting Size : 3/4" X 1"
Fitting Type : Adapter
Manufacturer Name : Uponor
Material : Brass
- Water Meter Connector
- Item Connector
- Type Straight
- Designated Size 3/4 Inch x 1 Inch
- End Connection PEX x NPSM
- Material Polyphenylsulfone
- Pressure Rating 150 PSI at 210 Deg F
- Temperature Rating 320 Deg F
- Application Hot/Cold Domestic Potable Water System, Commercial
- Applicable Standard UL, CAN/CSA B137.5, NSF/ANSI 14/61G, ASTM F877/F1960, IPC, UPC, NSPC, NPC (Canada)
- Lead-Free
- Nut Size 3/4 to 1 Inch NPSM
- Includes Metal/Polypropylene GF30 Black Nut, 0.118 Inch Thickness EPDM Gasket
- Specification Sheet
- Lead-FreeTargeted for commercial multifamily sub-metering as well as residential whole-home metering, Uponor's ProPEX water service offering is designed for direct connection to water meters sized 5⁄8" to 1".ProPEX EP water meter fittings provide a straight or 90-degree connection to water meters for 3⁄4" and 1" Uponor AquaPEX tubing. They are sold as a kit containing the fitting along with a gasket and two swivel nuts (EP nuts for plastic meters and metal nuts for metal meters).
