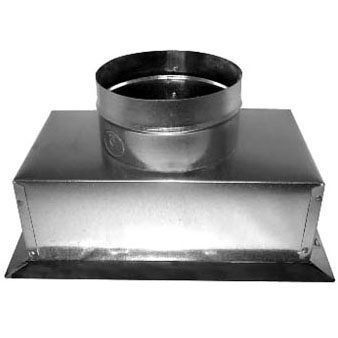

Part No. 85 Southwark 10" X 10" X 8" Insulated Ceiling Box - Top Outlet
Part #SOU8510.10.8
MFG #8510108
Gauge : 30 Gauge
Manufacturer Name : Southwark
Option : Ceiling Box
- Ceiling Outlet Register Box
- Type Register
- Size A 10" Square
- Size B 8" Diameter
- Outlet Type Top
- Material Thickness 30 Gauge Box, 28 Gauge Collar
- Material ASTM A653 CS Type B Hot Dipped Galvanized Steel
- Inclusions/Features Insulated, 2" Bottom Flange, 1/2" Drywall Flange, 3" Collar with Bead, R4/R6/R8 Outer Liner
- Overall Height 7-1/2"
- Packaging Quantity 1
- Since 1946, Southwark Metal Manufacturing has established itself as one of the largest manufacturers of HVAC sheet metal pipe, duct, and fittings for residential and light commercial applications.
