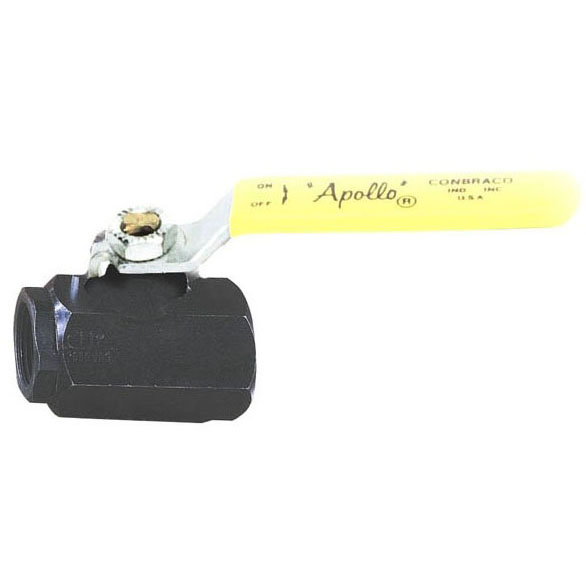

72-104-27A Apollo 72-100 Series 3/4" Female NPT Carbon Steel High Pressure Ball Valve with Stainless Steel Latch-Lock Lever & Nut
Part #APO7210427A
MFG #72-104-27A
End Connection : Female Thread
Manufacturer Name : Apollo
Material : Carbon Steel
Valve Size : 3/4"
- 72-100 Series Carbon Steel High Pressure Ball Valve; Barstock Design; Reinforced Seat; Fire Safe Design when Ordered with Graphite Packing; Zinc Phosphate Corrosion Protection; Adjustable Packing Gland; Blow-Out Proof Stem Design; Heavy Duty Lever; 5 Year Warranty
- Install Instructions
Specification Sheet - Ball Valve
- Type 2-Piece
- Applicable Standard MSS SP-110, WW-V-35C
- Actuation Type Heavy Duty Lever
- Nominal Size 3/4"
- End Connection Female Threaded x Female Threaded
- End to End Distance 3.8"
- Ball Material ASTM A108 Chrome Plated Carbon Steel
- Body Material ASTM A108 Carbon Steel
- Stem Material ASTM A108 Chrome Plated Carbon Steel
- Seat Material RPTFE
- Seal Material RPTFE
- Handle Material Zinc Plated Steel Lever, Vinyl Grip
- Port Type Full
- Temperature Rating 300 Deg F
- Pressure Rating 150 PSIG SWP, 3000 PSIG Non-Shock CWP
- Inclusions/Features Adjustable Packing Gland, Blow-Out Proof Stem Design, Barstock Design, Reinforced Seat, Corrosion Protection, Heavy Duty Lever
- Application Commercial, Fire
- Weight 3.09 Lb
- Packaging Quantity 4 per Box
- Warranty 5 Year
