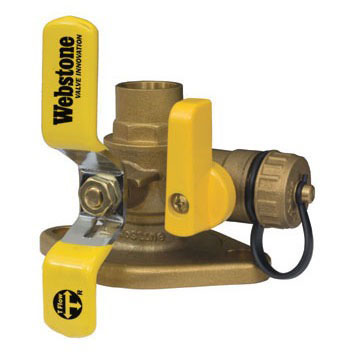

H-51413 Webstone 3/4" Sweat Rotated Isolator Flange Full-Port Ball Valve With Multi-Function Drain
Part #WEBH51413
MFG #H-51413
Manufacturer Name : Webstone
- Ball Valve
- Type 3-Way
- Applicable Standard ASME B16.18, ISO 9001
- Actuation Type T-Handle
- Nominal Size 3/4"
- End Connection Soldered x Flanged
- End to End Distance 3"
- Ball Material Hard Chrome Plated Brass
- Body Material Forged Brass
- Stem Material Brass
- Seat Material PTFE
- Seal Material PTFE Stem Seal, Brass Packing Gland
- Handle Material Chrome Plated Steel
- Port Type Full
- Temperature Rating 100 To 366 Deg F
- Pressure Rating 600 PSI WOG
- Inclusions/Features Brass End Cap/Adjustable Packing Gland/Drain Valve Handle Screw, Detachable Rotating Flange, Enamel Coated Aluminum Drain Valve Handle, Multi-Function Hi-Flow Hose Drain, Stainless Steel Handle Nut/Rotating Flange Ring, Vinyl Handle Jacket, Zinc Plated Flange Bolts and Nuts
- Application Residential, Commercial, Industrial, Glycol Mixture, Water
- Flange Length 4-3/16"
- Packaging Quantity 2 per Carton, 20 per Case
- Warranty Lifetime
- Specification Sheet
- The Features and Benefit's You Trust in Our Original Isolator Line with Two Versatile Enhancements; First, 360 Deg F Flange Rotation that Allows for Rotation to any Degree Necessary for Your Installation; Second, a Multi-Function Drain that Makes the Isolator the Only Valve that Drains from Both Sides of the Pump; Unique Uni-Body Design is Preserved; Fully Removable Outer Flange Secured by Snap Ring; Multi-Function Drain; Lifetime Warranty
