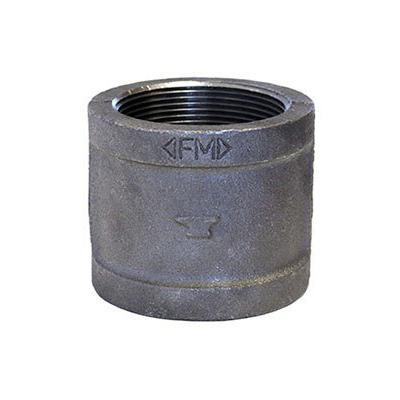

1-1/4" Domestic Black Malleable Iron Coupling
Part #114DBMICOUP
MFG #1B.BMC
End Connection : Female Thread
Fitting Size : 1-1/4"
Fitting Type : Coupling
Manufacturer Name : Ward
Material : Malleable Iron
Option : Domestic
- Coupling Fitting
- Type Straight
- Applicable Standard ASME B16.3, ANSI/ASME B1.20.1, UL, ULC, FM, NSF 61/61G
- Size A 1-1/4"
- Size B 1-1/4"
- Thickness STD
- End Connection Female Threaded x Female Threaded
- Material Malleable Iron
- Material Specification ASTM A197/A153/B633
- Process Machined
- Finish Black
- Pressure Rating Class 150, 300 PSI at -20 to 150 Deg F
- Temperature Rating 550 Deg F
- Application Piping, Air, Chemical
- Size 1.93" Length x 2.15" Outer Diameter Band
- Packaging Quantity 15 Per Inner Pack, 60 Per Master Carton
- Warranty 1 Year
- Ward Class 150 Malleable Iron Fittings are Made with the Most Sophisticated Metallurgical and Processing Controls Available; This Sophisticated Chemical Analysis is Complemented by Rigorous Quality Control of Incoming Raw Materials and Iron Processing; The Final Casting Produced by this Detailed Attention to Quality is a Close Grained, High Strength, Non Porous Iron; The Threads have an Accurate Form, Thread Length and Straightness to Allow them to Easily Engage Threaded Pipe; Ward Fittings have a Chamfered Opening to Allow Faster and Easier Pipe Engagement; This Feature Also Protects the Fitting Threads from Damage During Handling; 1 Year Warranty
