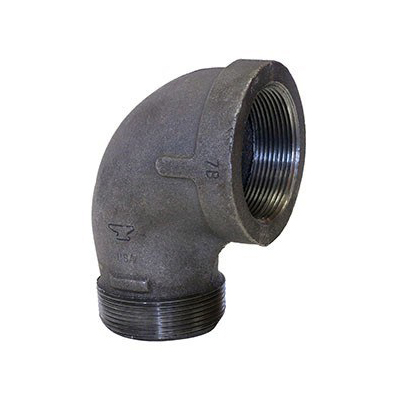

1/2 GALV MI ST 90-ELL
Part #12GSTL
MFG #D.NMSL
End Connection : Male Thread X Female Thread
Fitting Size : 1/2"
Fitting Type : 90 Elbow
Manufacturer Name : Ward
Material : Malleable Iron
- Elbow Fitting
- Type Street
- Applicable Standard ANSI/ASME B1.20.1, ASME B16.3, UL, ULC, FM, NSF 61/61G
- Angle 90 Degree
- Size A 1/2"
- Size B 1/2"
- Thickness STD
- End Connection Female Threaded X Male Threaded
- Material Malleable Iron
- Material Specification ASTM A197/A153/B633
- Process Cast, Machined
- Finish Galvanized
- Pressure Rating Class 150, 300 PSI at -20 to 150 Deg F
- Temperature Rating 366 Deg F
- Application Piping, Air, Chemical
- Center to End Distance 0.88"
- Packaging Quantity 50 Per Inner Pack, 200 Per Master Carton
- 1 Year Warranty
- Warranty 1 Year
- Ward Class 150 Malleable Iron Fittings are Made with the Most Sophisticated Metallurgical and Processing Controls Available; This Sophisticated Chemical Analysis is Complemented by Rigorous Quality Control of Incoming Raw Materials and Iron Processing; The Final Casting Produced by this Detailed Attention to Quality is a Close-Grained, High Strength, Non-Porous Iron; The Threads have an Accurate Form, Thread Length and Straightness to Allow them to Easily Engage Threaded Pipe; Ward Fittings have a Chamfered Opening to Allow Faster and Easier Pipe Engagement; This Feature Also Protects the Fitting Threads from Damage During Handling; 1 Year Warranty
