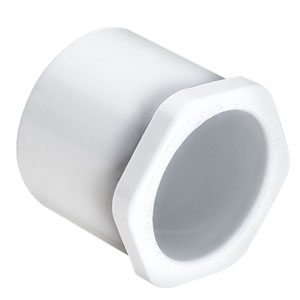

437-290 2-1/2" X 1-1/4" PVC Schedule 40 Spigot X Socket Bushing
Part #212.114PVC40B
MFG #437-290
End Connection : Spigot X Socket Weld
Fitting Size : 2-1/2" X 1-1/4"
Fitting Type : Bushing
Manufacturer Name : Spears
Material : PVC Plastic
Schedule : 40
- Bushing Fitting
- Type Flush
- Applicable Standard NSF
- Size 2-1/2" x 1-1/4"
- Schedule 40 S
- Thickness 0.203"
- End Connection Spigot x Socket
- Material PVC
- Material Specification ASTM D1784/D1785/D2466
- Process Injection Molded
- Finish White
- Temperature Rating 140 Deg F
- Application Potable Water System
- Overall Length 2-3/16"
- Packaging Quantity 10 Per Inner Pack, 40 Per Master Carton
- Warranty Lifetime Limited
- MSDS Sheets
Specification Sheet - Designs Combine Years of Proven Experience with Computer Generated Stress Analysis to Yield the Optimum Physical Structure and Performance for Each Fitting; Material Reinforcement is Uniformly Placed in Stress Concentration Areas for Substantially Improved Pressure Handling Capability, Resulting Products are Subjected to Numerous Verification Tests to Assure Obtaining the Very Best PVC Fittings Available; Exceptional Chemical and Corrosion Resistance will Provide Many Years of Maintenance-Free Service and Extended System Life; Lower Installation Costs; Smooth Interior Walls Result in Lower Pressure Loss and Higher Volume than Conventional Metal Fittings; Advanced Design Specialty Fittings; Made in USA; Lifetime Limited Warranty
