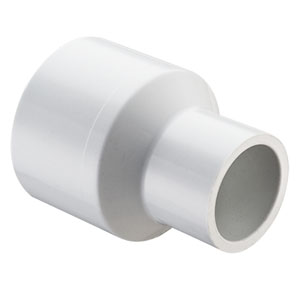

429-338 3" X 2" PVC Schedule 40 Socket X Socket Coupling
Part #3.2PVC40COUP
MFG #429-338
End Connection : Socket Weld
Fitting Size : 3" X 2"
Fitting Type : Coupling
Manufacturer Name : Spears
Material : PVC Plastic
Schedule : 40
- Coupling Fitting
- Type Reducing
- Applicable Standard NSF
- Size A 3"
- Size B 2"
- Schedule 40 S
- Thickness 0.216"
- End Connection Socket x Socket
- Material PVC
- Material Specification ASTM D1784/D1785/D2466
- Process Injection Molded
- Finish White
- Temperature Rating 140 Deg F
- Application Potable Water System
- Overall Dimension 4-3/16" Outer Diameter x 4" Length
- Packaging Quantity 10 Per Inner Pack
- Warranty Lifetime Limited
- MSDS Sheets
Specification Sheet - Designs Combine Years of Proven Experience with Computer Generated Stress Analysis to Yield the Optimum Physical Structure and Performance for Each Fitting; Material Reinforcement is Uniformly Placed in Stress Concentration Areas for Substantially Improved Pressure Handling Capability, Resulting Products are Subjected to Numerous Verification Tests to Assure Obtaining the Very Best PVC Fittings Available; Exceptional Chemical and Corrosion Resistance will Provide Many Years of Maintenance-Free Service and Extended System Life; Lower Installation Costs; Smooth Interior Walls Result in Lower Pressure Loss and Higher Volume than Conventional Metal Fittings; Advanced Design Specialty Fittings; Made in USA; Lifetime Limited Warranty
