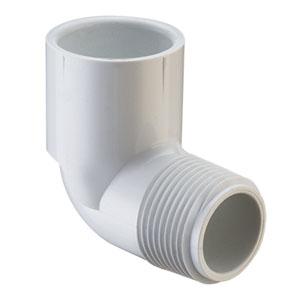

410-007 3/4" PVC Schedule 40 Socket X Male Street 90 Elbow
Part #34PVC40MST90
MFG #410-007
End Connection : Socket Weld X Male Thread
Fitting Size : 3/4"
Fitting Type : 90 Elbow
Manufacturer Name : Spears
Material : PVC Plastic
Schedule : 40
- Elbow Fitting
- Type Street
- Applicable Standard NSF
- Angle 90 Degree
- Size A 3/4"
- Size B 3/4"
- Schedule 40 S
- Thickness 0.113"
- End Connection Socket x Male Threaded
- Material PVC
- Material Specification ASTM D1785/D2466
- Process Injection Molded
- Finish White
- Temperature Rating 140 Deg F
- Application Potable Water
- Outer Diameter 1-5/16"
- Packaging Quantity 50
- Warranty Lifetime Limited
- MSDS Sheets
Specification Sheet - Designs Combine Years of Proven Experience with Computer Generated Stress Analysis to Yield the Optimum Physical Structure and Performance for Each Fitting; Material Reinforcement is Uniformly Placed in Stress Concentration Areas for Substantially Improved Pressure Handling Capability, Resulting Products are Subjected to Numerous Verification Tests to Assure Obtaining the Very Best PVC Fittings Available; Exceptional Chemical and Corrosion Resistance will Provide Many Years of Maintenance Free Service and Extended System Life; Lower Installation Costs; Smooth Interior Walls Result in Lower Pressure Loss and Higher Volume than Conventional Metal Fittings; Advanced Design Specialty Fittings; Lifetime Limited Warranty
