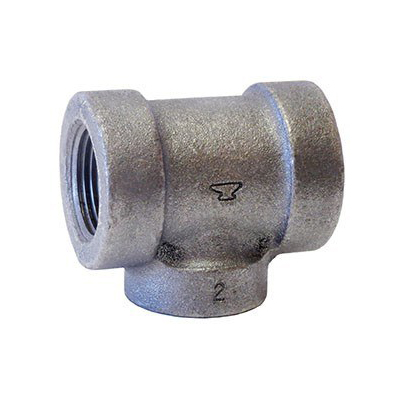

3/8" Domestic Black Cast Iron Tee
Part #38DBCIT
MFG #C.BCT
End Connection : Female Thread
Fitting Size : 3/8"
Fitting Type : Tee
Manufacturer Name : Ward
Material : Cast Iron
Option : Domestic
- Tee Fitting
- Type Straight
- Applicable Standard ANSI/ASME B16.4, ANSI/ASME B1.20.1, UL, ULC, FM, NSF 61/61G
- Nominal Size 3/8"
- Thickness 0.12"
- End Connection Female Threaded x Female Threaded x Female Threaded
- Material Cast Iron
- Material Specification ASTM A126A/A153/B633
- Finish Black
- Pressure Rating Class 125, 175 PSI at -20 to 150 Deg F
- Temperature Rating 400 Deg F
- Application Piping, Chemical
- Packaging Quantity 25 per Inner Pack, 150 per Master Carton
- Warranty 1 Year
- The Iron from Which Class 125 Cast Iron Fittings are Made is Held to Strict Formula by Careful Chemical Analysis and Control; Straightness and Correct Depth of Threads is Assured through Continuous Capable Inspection, by Careful Trained Inspectors; Every Fitting is Hand Sorted and Inspected to Eliminate Defective Castings; A Chamfer is Cut or Cast in All Openings, Permitting Easy Entrance of Pipe and Preventing Damage to the First Thread in Handling and Threading; The Use of Modern Precision Equipment We are Able to Produce Castings of Rugged Strength and the Ability to Make a Water Tight Seal; 1 Year Warranty
