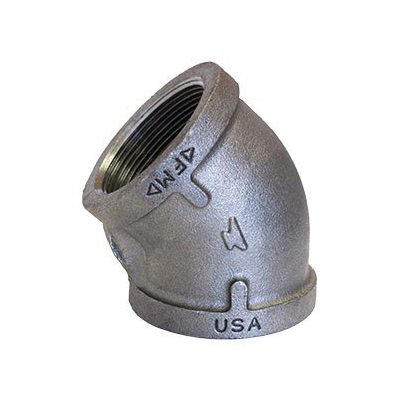

3/8" Domestic Black Malleable Iron 45 Elbow
Part #38DBMI45
MFG #C.BM45L
End Connection : Female Thread
Fitting Size : 3/8"
Fitting Type : 45 Elbow
Manufacturer Name : Ward
Material : Malleable Iron
- Elbow Fitting
- Applicable Standard ANSI/ASME B1.20.1, ASME B16.3, UL, ULC, FM, NSF 61/61G
- Angle 45 Degree
- Size A 3/8"
- Size B 3/8"
- Thickness STD
- End Connection Female Threaded X Female Threaded
- Material Malleable Iron
- Material Specification ASTM A197/A153/B633
- Process Cast, Machined
- Finish Black
- Pressure Rating Class 150, 300 PSI at -20 to 150 Deg F
- Temperature Rating 366 Deg F
- Application Piping, Air, Chemical
- Center to End Distance 0.8"
- Packaging Quantity 40 Per Inner Pack, 240 Per Master Carton
- 1 Year Warranty
- Warranty 1 Year
- Ward Class 150 Malleable Iron Fittings are Made with the Most Sophisticated Metallurgical and Processing Controls Available; This Sophisticated Chemical Analysis is Complemented by Rigorous Quality Control of Incoming Raw Materials and Iron Processing; The Final Casting Produced by this Detailed Attention to Quality is a Close-Grained, High Strength, Non-Porous Iron; The Threads have an Accurate Form, Thread Length and Straightness to Allow them to Easily Engage Threaded Pipe; Ward Fittings have a Chamfered Opening to Allow Faster and Easier Pipe Engagement; This Feature Also Protects the Fitting Threads from Damage During Handling; 1 Year Warranty
