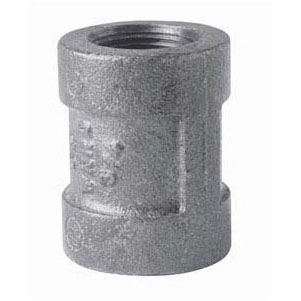

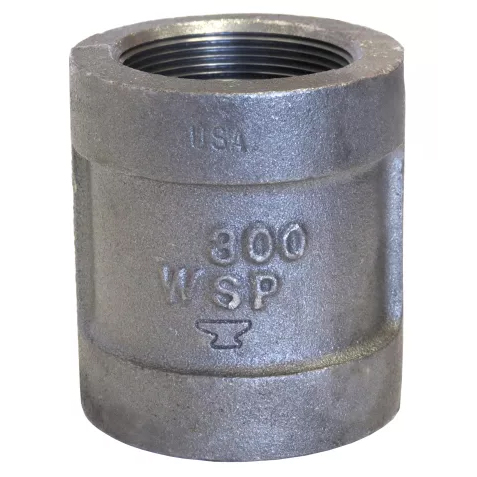

3/8" Domestic Extra Heavy Black Malleable Iron Coupling
Part #38DXHBMICOUP
MFG #C.B300C
End Connection : Female Thread
Fitting Size : 3/8"
Fitting Type : Coupling
Manufacturer Name : Ward
Material : Malleable Iron
- Coupling Fitting
- Type Straight
- Applicable Standard ASME B16.3, ANSI/ASME B1.20.1, UL, ULC, FM, NSF 61/61G
- Size A 3/8"
- Size B 3/8"
- Thickness XH
- End Connection Female Threaded x Female Threaded
- Material Malleable Iron
- Material Specification ASTM A197/A153/B633
- Process Machined
- Finish Black
- Pressure Rating Class 300, 2000 PSI at -20 to 150 Deg F
- Temperature Rating 550 Deg F
- Application Piping
- Size 1.62" Length x 1.12" Outer Diameter Band
- Packaging Quantity 25 Per Inner Pack, 150 Per Master Carton
- Warranty 1 Year
- Ward Class 300 Malleable Iron Fittings are Designed to Handle Higher Pressures and More Rugged Service than our Class 150 Fittings; Class 300 Fittings are Made with the Most Sophisticated Metallurgical and Processing Controls Available; Wards Quality Assurance Program Ensures that the Iron is Made with High Quality Raw Materials and Processed According to Rigorous Standards; Iron Samples are Continuously Analyzed to Ensure that a Close Grained, High Strength, Non Porous Iron is Produced; Ward Fittings have a Chamfered Opening to Allow Faster and Easier Pipe Engagement; This Feature Also Protects the Fitting Threads from Damage During Handling; 1 Year Warranty
