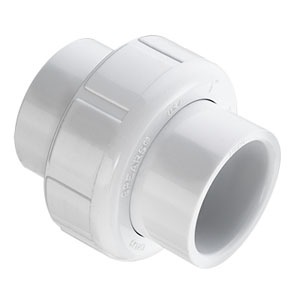

457-030 3" PVC Schedule 40 Socket Union
Part #3PVC40U
MFG #457-030
End Connection : Socket Weld
Fitting Size : 3"
Fitting Type : Union
Manufacturer Name : Spears
Material : PVC Plastic
Schedule : 40
- Union Fitting
- Applicable Standard NSF
- Size A 3"
- Size B 3"
- Schedule 40 S
- Thickness 0.216"
- End Connection Socket x Socket
- Material PVC
- Material Specification ASTM D1785/D2466
- Process Injection Molded
- Finish White
- Pressure Rating 150 PSI at 73 Deg F
- Temperature Rating 140 Deg F
- Application Potable Water
- Overall Dimension 4" Outer Diameter x 4-11/32" Length
- Nut Outer Diameter 5-3/32
- Packaging Quantity 5 Per Inner Box
- Warranty Lifetime Limited
- MSDS Sheets
Specification Sheet - Made in USA; Designs Combine Years of Proven Experience with Computer Generated Stress Analysis to Yield the Optimum Physical Structure and Performance for Each Fitting; Material Reinforcement is Uniformly Placed in Stress Concentration Areas for Substantially Improved Pressure Handling Capability, Resulting Products are Subjected to Numerous Verification Tests to Assure Obtaining the Very Best PVC Fittings Available; Exceptional Chemical and Corrosion Resistance will Provide Many Years of Maintenance-Free Service and Extended System Life; Lower Installation Costs; Smooth Interior Walls Result in Lower Pressure Loss and Higher Volume than Conventional Metal Fittings; Advanced Design Specialty Fittings; Lifetime Limited Warranty
