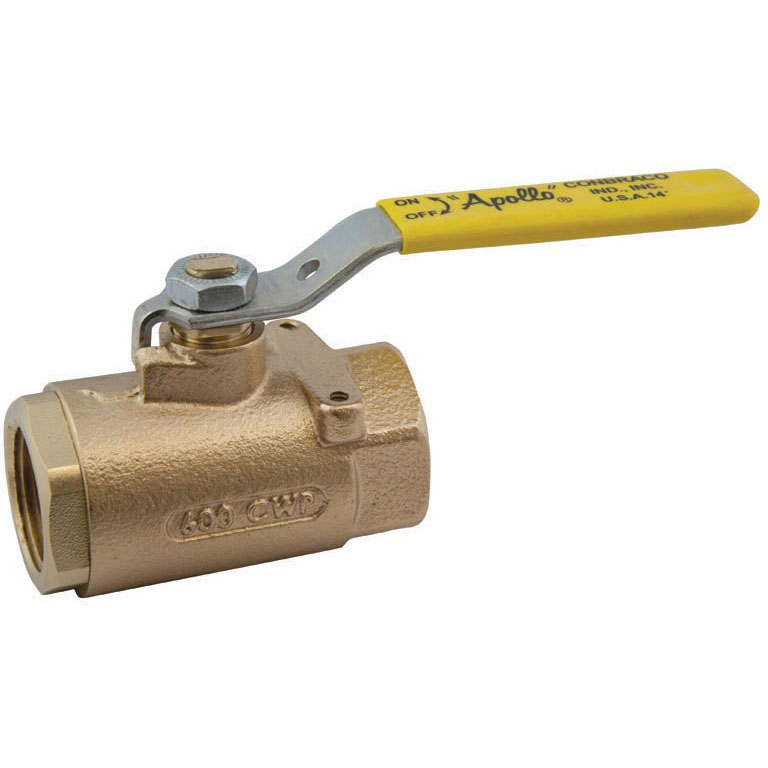

7110801 2"IPS BALL VALVE
Part #APO7110801
MFG #71-108-01

End Connection : Female Thread
Manufacturer Name : Apollo
Material : Bronze
Valve Size : 2"
- Ball Valve
- Type 2-Piece
- Applicable Standard MSS SP-110, WW-V-35C, CRN OC10908.5C, ISO 9001
- Actuation Type Lever
- Nominal Size 2"
- End Connection Female Threaded x Female Threaded
- End to End Distance 4.68"
- Ball Material ASTM B16 Chrome Plated Brass
- Body Material ASTM B584 C84400 Bronze
- Stem Material ASTM B16 Brass
- Seat Material RPTFE
- Seal Material RPTFE
- Handle Material Zinc Plated Steel Lever, Vinyl Grip
- Port Type Standard
- Temperature Rating 500 Deg F
- Pressure Rating 150 PSIG SWP, 600 PSIG Non-Shock CWP
- Inclusions/Features Adjustable Packing Gland, Blow-Out Proof Stem Design, Mounting Pad
- Application Commercial
- Weight 5.72 Lb
- Packaging Quantity 2 per Box
- Warranty 5 Year
- Install Instructions
Specification Sheet - The Apollo 71 Series is a Standard Port Bronze Ball Valve with Direct Mounting Pad; It is Made from Proven ASTM Grade Materials for Long Service Satisfaction; Adjustable Packing; Blow-Out Proof Stem Design; Stuffing Box Ring; Mounting Pad for Easy Actuator Attachment; 5 Year Warranty
