Part #APO87A20801

MFG #87A-208-01

Specifications

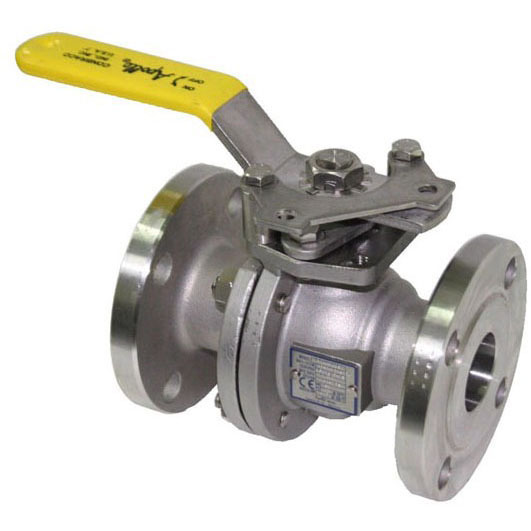

• Ball Valve
• Applicable Standard MSS SP-25/61/72, ASME B16.5/B16.10/B16.34/B16.33/B16.38/B31.1/B31.3/B31.8, API 607/608, NSF/ANSI 61/372, UL 125, NACE MR0175/MR0103
• Actuation Type Lever
• Nominal Size 2"
• End Connection Flanged x Flanged
• End to End Distance 7"
• Ball Material ASTM A276 316 Stainless Steel
• Body Material ASTM A351 CF8M Stainless Steel
• Stem Material ASTM A276 316 Stainless Steel
• Seat Material RPTFE
• Seal Material RPTFE
• Handle Material 316 Stainless Steel
• Port Type Full
• Temperature Rating 500 Deg F
• Pressure Rating Class 150
• Inclusions/Features Adjustable Stem Seals, Mounting Pad Bolt Pattern, Slot Vented Ball for Thermal Expansion, Saturated Steam, Grounded Ball and Stem, Blow-Out Proof Stem Design, Cast Boss for Bleed/Drain Port
• Weight 25 Lb
• Warranty 5 Year
