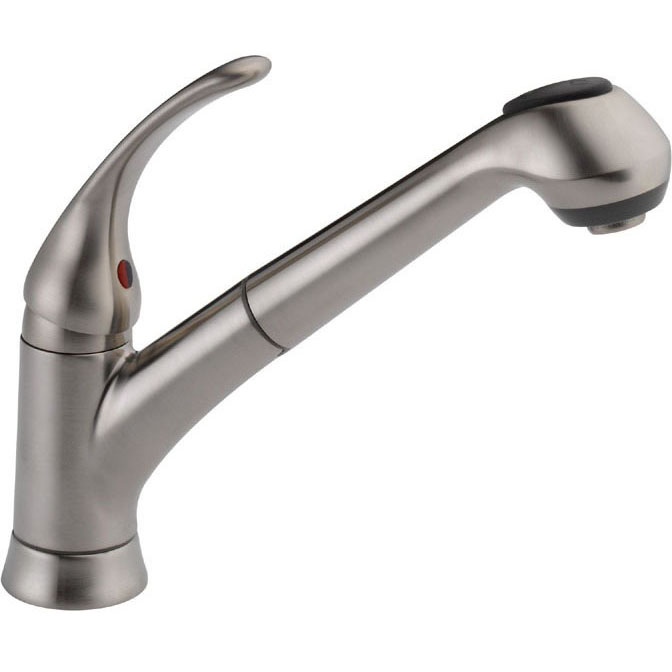

B4310LF-SS Foundations Single Handle Pull-Out Kitchen Faucet Stainless
Part #DB4310LFSS
MFG #B4310LF-SS
Color/Finish : Stainless
Faucet Holes : 3
Flow Rate : 1.80 GPM
Handles : 1
Manufacturer Name : Delta
Mount Type : Deck Mount
Spray Type : Pull-Out Spray
- Kitchen Faucet
- Type Single Handle, Deck Mount
- Applicable Standard ADA, ASME A112.18.1/CSA B125.1, ICC/ANSI A117.1, CSA, CALGreen, UPC
- Inlet Size 1/2"-14 TPI
- Spout Type Pull Out, Swivel
- Spout Dimensions 8-29/32" Height x 6-11/16" Clearance x 8-3/4" Reach
- Handle Type Lever
- Color/Finish Brilliance Stainless
- Inlet Connection Male Threaded
- Faucet Hole Center 8"
- Flow Rate 1.8 GPM at 60 PSI
- Inclusions/Features Lever Handle Control Mechanism is the Rotating Stainless Steel Ball Type with Replaceable Non-Metallic Seat, Control Handle Shall Return to Neutral Position when Valve is Turned off, Integral Double Check Valve in Spout, 59" Length Hose
- Used On Item Kitchen Sink
- Lead Free
- Maximum Deck Thickness 2-1/2"
- Warranty 5 Year Limited (Commercial/Industrial/Business Application), Lifetime Limited Warranty Material, Workmanship and Finish Defects to the Original Consumer Purchaser
- Install Instructions
Specification Sheet - Lead Free Compliant with State and Federal Drinking Water Legislation; Brilliance Finishes, which Resist Abrasions and Discolorations Better Than Traditional Brass or Even Chrome; Pull-Out Spout Swivels 120 Degree for Added Convenience; 59" Length Hose Provides Outstanding Reach; Control Handle Shall Return to Neutral Position When Valve is Turned Off; 5 Year Limited (Commercial/Industrial/Business Application), Lifetime Limited Warranty Material, Workmanship and Finish Defects to the Original Consumer Purchaser Warranty
