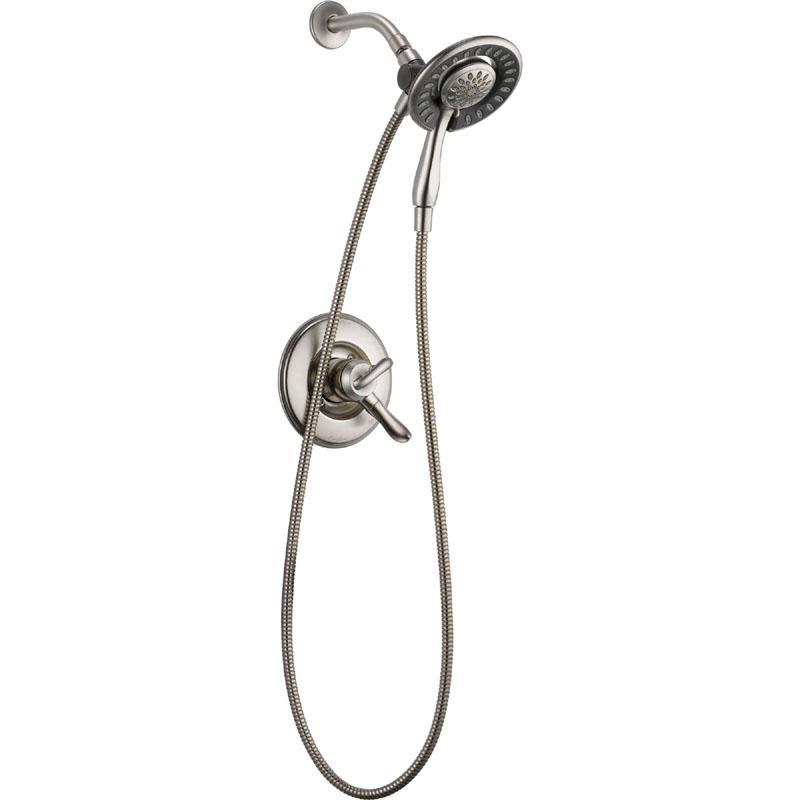

T17294-SS-I Linden Monitor 17 Series Shower Trim With In2ition Stainless
Part #DT17294SSI
MFG #T17294-SS-I

Manufacturer Name : Delta
- Shower Faucet Trim
- Type Wall Mount, Pressure Balancing
- Applicable Standard ADA, ASME A112.18.1/CSA B125.1, ASSE 1016, ICC/ANSI A117.1, UPC
- Handle Type Lever
- Number of Handles 1
- Handle Material Forged Solid Brass
- Valve Type Pressure Balancing Mixing Valve
- Shower Head Material Forged Solid Brass
- Color/Finish Brilliance Stainless
- Flow Rate 2.5 GPM at 80 PSI
- Inclusions/Features Back-to-Back Installation Capability, Field Adjustable to Limit Handle Rotation into Hot Water Zone, In2ition Two-in-One Shower, Full Body Spray, Fast Massage, Temperature Adjustment Dial
- Warranty 5 Year Limited (Commercial/Industrial/Business Application), Lifetime Limited Warranty Material, Workmanship and Finish Defects to the Original Consumer Purchaser
- Install Instructions
Specification Sheet - Diverter Lever Sets two in one Shower to one of Three Options, Showerhead and Hand Shower, Showerhead only, and Hand Shower only; Pressure Balance Valve Keeps Water Temperature within a Safe +/- 3 Degree F +/- 1.6 Degree C, Helping to Protect you from Sudden Changes in Hot or Cold Water Pressure; Pause Feature Reduces the Water to a Trickle, Allowing you to Conserve Water While Doing Tasks Such as Lathering up or Shaving your Legs; Trim Kit only, Must Order MultiChoice Universal Rough-In Separately to Complete the Unit; Dial Adjusts Temperature Handle Adjusts Volume; Meets Standards Set by Americans with Disabilities Act (ADA); 5 Year Limited (Commercial/Industrial/Business Application), Lifetime Limited Warranty Material, Workmanship and Finish Defects to the Original Consumer Purchaser Warranty
