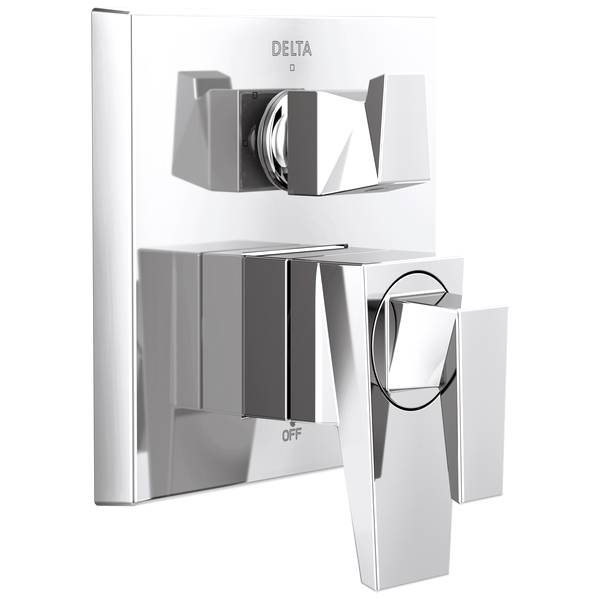

T27843-PR Delta Trillian Two-Handle Monitor 17 Series Valve Trim With Three-Function Integrated Shower Diverter Less Valve Lumicoat Chrome
Part #DT27843PR
MFG #T27843-PR
Manufacturer Name : Delta
- Lumicoat Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without chemicals or cleaners on the product’s most commonly touched areas
- Delta Multichoice Integrated Shower Diverter provides a sleek, streamlined style for your shower while eliminating the need for an additional diverter valve
- Top handle controls diverter functions
- Bottom handle controls on/off and adjusts volume, while the dial controls temperature
- 2-port, 3-position diverter
- 2 individual and 1 shared position
- Monitor 17 Series dual-function pressure balance cartridge
- Monitor pressure balance valve keeps water temperature within a safe ±3.6 Degree F (±1.7 Degree C), helping to protect you from sudden changes in hot or cold water pressure
- Trim kit only, must order Multichoice Universal integrated diverter rough separately to complete the unit
- Recommended rough-in valve kit R22000 sold separately
- Field adjustable to limit handle rotation into hot water zone
- Bottom handle 90 Degree maximum rotation
- Red/Blue indicator markings
- Standard installation allows up to 1-1/8 in. finished wall thickness
- ADA Compliant
- Install Instructions
Specification Sheet - The prismatic faceting of the Trillian Bath Collection is an evolution of modern style that creates an edgy look which catches the light as well as the eye. Delta showers with Monitor pressure-balance valves are engineered to make sure you don’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. By integrating separate controls on one trim with the Multichoice Integrated Shower Diverter, we’ve streamlined installation and your shower style. With the Multichoice Universal system, you have the freedom to upgrade style and functionality later. And, because there’s no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates. With separate volume and temperature control on this model, simply set the water at your preferred temperature and turn the shower on or off with the volume control handle — without interrupting your set temperature. You can install with confidence, knowing that Delta showers are backed by our Lifetime Limited Warranty.
