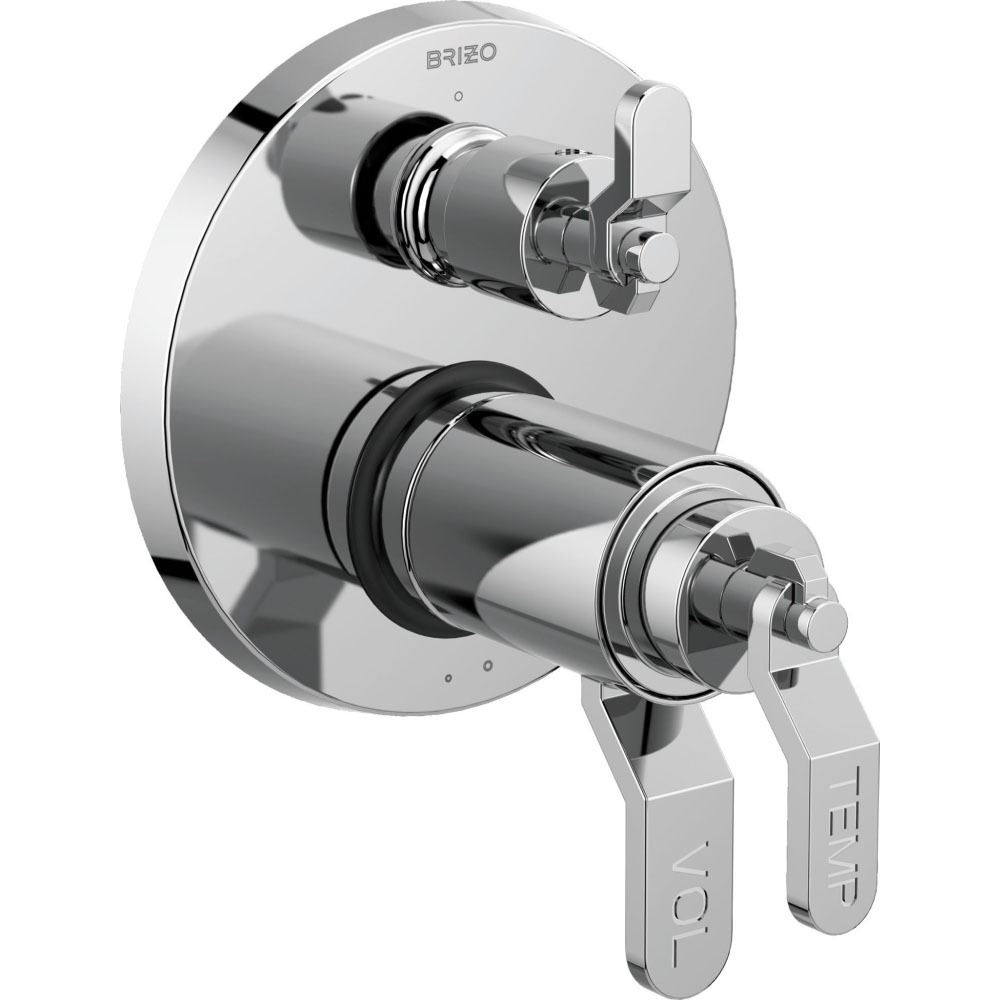

T75535-PCLHP Tempassure Thermostatic Valve Trim With 3-Function Diverter Less Handles Chrome
Part #DT75535PCLHP
MFG #T75535-PCLHP

Manufacturer Name : Brizo
- Diverter Valve Trim
- Type 3-Function, Wall Mount, Diverter
- Handle Type Lever
- Finish Polished Chrome Plated
- Flow Rate 7.2 GPM at 60 PSI
- Inclusions/Features Cartridge
- Used On Item Universal Integrated Shower Diverter Rough
- Used On Model/Brand R75000, Multi-Choice
- Exclusions Handle
- Applicable Standard ASME A112.18.1/CSA B125.1, ICC/ANSI A117.1
- Size 6-5/8 Inch Diameter x 4-3/8 Inch Length
- Temperature Rating +/-3.6 Deg F
- Install Instructions
Specification Sheet - Main Control Utilizes Thermostatic Valve Cartridge; Back-to-Back Installation Capability; Top Handle Controls Diverter Functions; Bottom (2) Handles Control On/Off and Temperature; Field Adjustable to Limit Handle Rotation into Hot Water Zone; Bottom Handle 90 Degree Maximum Rotation; Hot/Cold Indicator Markings; Three Function Diverter (T75535-Lhp) has 2 Individual Positions and 1 Shared Position; Limited Lifetime Warranty
