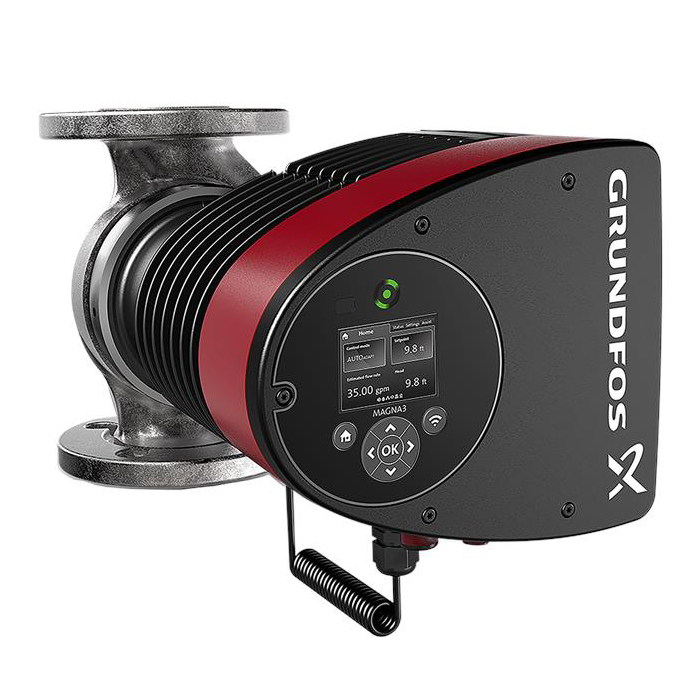

98126846 Grundfos MAGNA3 50-150 FN Stainless Steel Flange Mount Circulator Pump 208/230V 3/4 HP GF 53 Variable Speed

Part #GRUMAGNA350150208/230SS

MFG #98126846

Specifications

• Circulator Pump
• Type Canned Rotor, Compact, Single Head
• Applicable Standard ANSI/UL 778, CAN/CSA C22.2, ETL (Canada and US)
• Suction Size 50 MM
• Discharge Size 50 MM
• End Connection Flanged x Flanged
• Overall Dimensions 15.87" Length x 11.46" Width x 11.02" Height
• Flow Rate 346 GPM
• Discharge Head 150 Decimeter
• Casing Material Stainless Steel
• Shaft Material 316L Stainless Steel
• Impeller Material Polyethersulfone
• Warranty 24 Month Limited from Date of Installation, 30 Month Limited from Date of Manufacture
• Power Rating 3/4 HP
• Input Supply Rating 630 Watt at 208 to 230 Volt 50/60 Hertz 1 Phase 2.78 Amp
• Temperature Rating 14 to 230 Deg F
• Pressure Rating 175 PSI
• Motor Type Synchronous, Permanent Magnet, 4 Pole
• Inclusions/Features Aluminum Oxide Bearing Ring, Polycarbonate Control Box, Heat Energy Meter, Intuitive User Interface with TFT Display, Built-In Grundfos Differential Pressure and Temperature Sensor, Internal Motor Protection, Proportional-Pressure Control, Constant-Pressure Control, Constant-Temperature Control, Constant-Curve Duty, Automatic Night Setback
• Application Heating Systems, Air-Conditioning and Cooling Systems, Domestic Hot-Water Systems, Ground Source Heat Pump Systems, Solar-Heating Systems, Heating Surfaces
• Material Aluminum Stator Housing, EPDM O-Ring, Polypropylene Sulfide Rotor Can
• Net Weight 40 Lb
• Gross Weight 49 Lb
